ABS - Sanimax R202 Under Sink Waste Water Unit - 10m Cable - 230V

Name: ABS - Sanimax R202 Under Sink Waste Water Unit - 10m Cable - 230V
Brand: ABS
SKU: ABS-07565129
Price: 474.65 GBP
Availability: InStock

Part Number:

ABS-07565129

Materials ABS Sanimax is a compact, floor-level lifting station (sump) for effluent pumping from buildings and areas below sewer level (backwash level).

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£863.00 RRP £474.65 £395.54

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Materials

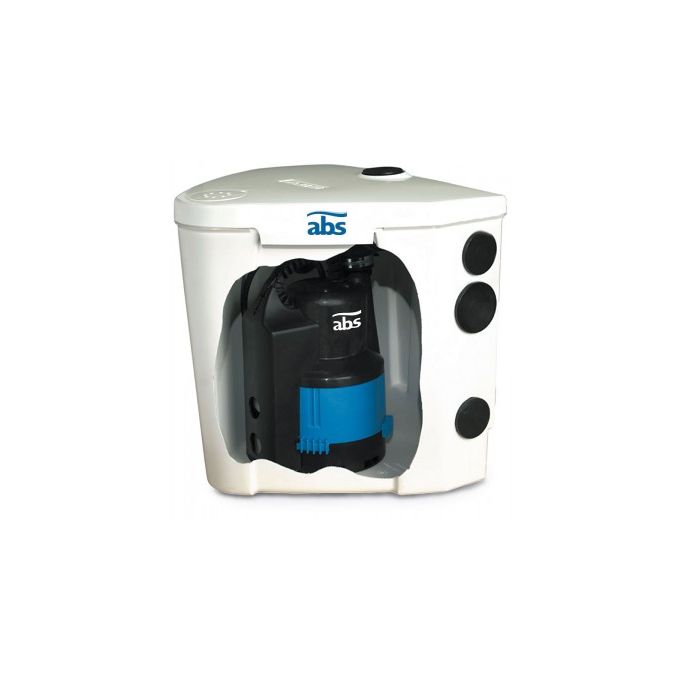

ABS Sanimax is a compact, floor-level lifting station (sump) for effluent pumping from buildings and areas below sewer level (backwash level). Sanimax is supplied as a robust plug-in unit and features a submersible pump from the Robusta or MF ranges (including MF 154 HW hot water variants, model dependent) with automatic level control and a non-return valve as standard.

Main benefits

Supplied as standard with pump, automatic level control and non-return valve
Compact dimensions allow passage through a standard door opening
Seven ports (5 x 40 mm, 2 x 50 mm) for inflow/discharge/cables/aux connections (config dependent)
Easy to transport with simple discharge line connection
Optional alarm float switch accessory

Main design features

Ready-for-use plug-in unit with Schuko plug
Compact triangular design optimises space beneath a wash-hand basin
Odour-tight lid with odour lock and venting (incl. charcoal odour filter) and overflow protection
Solids handling depends on fitted pump: up to 10 mm (Robusta), 20 mm (MF 154) and 30 mm (MF 324)

Typical applications

Effluent pumping from washing machines, sinks, dishwashers, showers, and bathtubs

R202 Version

The ABS Sanimax R202 Under Sink Waste Water Unit - 10m Cable is a Waste Water Unit item. Voltage for this item is 230V. It is supplied with a 10m cable. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features

Motor power
From Mains - 0.49KW
From Motor Shaft - 0.16kW
Speed - 2900 r/min
Rated voltage - 230V
Rated current - 2.11A
Cable length - 10m
Weight - 5.3kg
Capacity - 28 Litres
Switching
ON - 100mm, OFF - 50mm
Volume Levels
Pumped volume - 3.0L
Residual volume - 3.5L
Max solid size: 10mm

Tank - Polypropylene
Pump Housing - Polypropylene
Motor Housing - Stainless Steel n.a. / 1.4401
Rotor Shaft - Stainless Steel 1.4021 / 1.4401
Impeller - Polyamide
Seal - Neoprene

Variable ports, ready prepared for connection for inflow lines and power cable as well as a discharge connection for a PVC pipe
Hose nozzle for connection of a 3/4" hose
Odour-tight lid with integral venting including odour filter with back-flow prevention
Integral non-return valve fitted as standard
Universal plug/cable entry
Special level control for all inflow heights, back-wash proof to a max. of 100 mm above floor level

ABS (Sulzer) pumps are widely used for drainage and wastewater duties where dependable, low-maintenance operation is essential. The range focuses on durable construction, reliable hydraulics and straightforward installation, commonly specified for sump drainage, cellar dewatering and dirty-water transfer in residential, commercial and light industrial applications.

More Information
Price	£395.54
Manufacturer	ABS
Warranty	1 year guarantee
Electrical supply	230V
AC Power	Single Phase
Cable length	10m
Pump Type Filter	Waste Water Unit
Switch	None
Duty Type	Domestic
Submersible vs Surface Mounted	Surface Mounted
Next Day Delivery	No
Manufacturers Part Number	7565129
