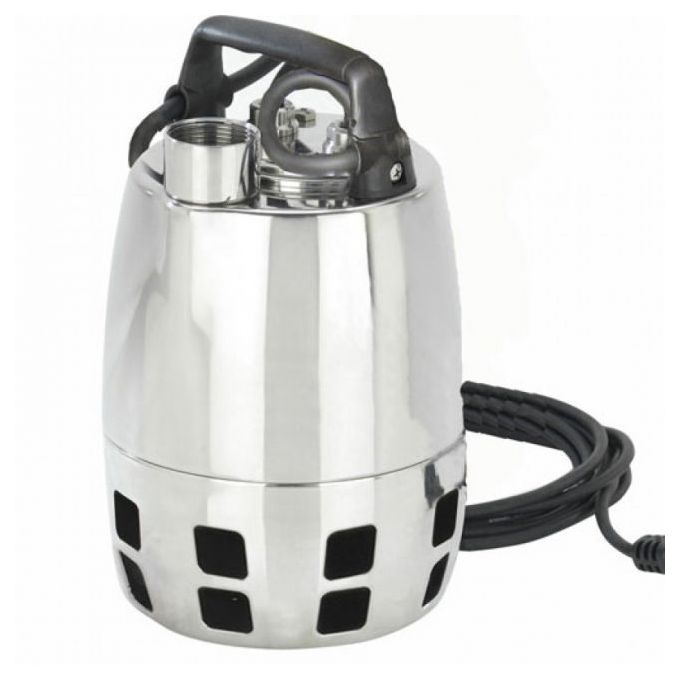

Calpeda - GXVm 25-8-SG Submersible Dirty Water Pump - without Floatswitch - 110V - 200 Ltr/min - 8.2m Head

Name: Calpeda - GXVm 25-8-SG Submersible Dirty Water Pump - without Floatswitch - 110V - 200 Ltr/min - 8.2m Head
Brand: Calpeda
SKU: 72U10350009
Price: 621.06 GBP
Availability: InStock

Part Number:

72U10350009

Construction Details: The Calpeda GXVm 25-8-SG Submersible Dirty Water Pump - without Floatswitch - 110v is a Submersible product.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£828.07 RRP £621.06 £517.55

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Construction Details:

The Calpeda GXVm 25-8-SG Submersible Dirty Water Pump - without Floatswitch - 110v is a Submersible product. Voltage for this item is 110V. It is supplied with a 5m cable. It has an actual flow rate of 200 Ltr/min. The maximum head for this pump is 8.2m.

Real-world product applications

Removing water from pits, sumps, and collection points
Supporting drainage and water transfer duties
Dewatering flooded areas and low-lying spaces
Transferring water from tanks and containers
Assisting with general submersible pumping tasks

Key Product Features

For clean or slightly dirty water, containing solids up to 25 mm grain size
Particularly appropriate for liquidor with filamentous particles.
Flow rate: 200 Ltr/min
Voltage: 110V
Maximum head: 8.2m
Cable length: 5m

Single-impeller submersible pumps in chrome-nickel Stainless Steel, with vertical delivery port
GXV(25): with free-flow (vortex) impeller
Motor cooled by the pumped water passing between the motor jacket and the external jacket
Handle in polypropylene
Double shaft seal with oil chamber
1 1/4" BSP Female Discharge Port

Calpeda pumps cover a wide mix of water-moving applications, from everyday clean-water transfer through to drainage, wastewater handling, swimming pool water circulation and packaged system solutions. They are an long-standing Italian manufacturer of pumping systems, established in 1959, with product ranges used across domestic, commercial and industrial applications.

More Information
Price	£517.55
Manufacturer	Calpeda
Warranty	1 year guarantee
Dimensions	337mm High x 176mm Diameter
Impeller Type	Single
Electrical supply	110V
AC Power	Single Phase
Cable length	5m
Flow Rate	200 Ltr/min
Max Head	8.2m
Pump Operation	Manual (without float switch)
Water type	Dirty Water
Pump Type Filter	Submersible
Switch	None
Duty Type	Commercial
Submersible vs Surface Mounted	Submersible
Next Day Delivery	No
Connection Size	1 1/4 inch
Manufacturers Part Number	72U10350009

Data Sheet(s)
