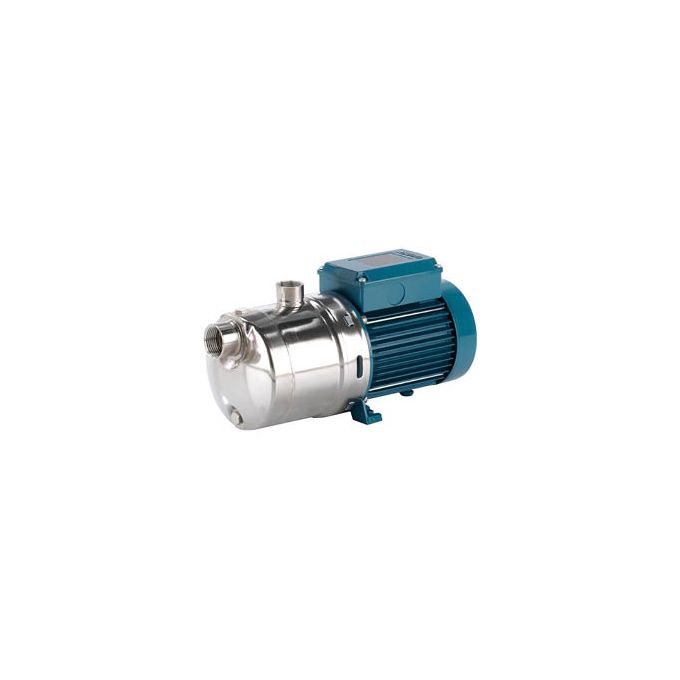

Calpeda - MXH 403/A Horizontal Multistage Pump - 3 Phase - 400V - 133 Ltr/min - 33m Head

Name: Calpeda - MXH 403/A Horizontal Multistage Pump - 3 Phase - 400V - 133 Ltr/min - 33m Head
Brand: Calpeda
SKU: 62231031000
Price: 609.61 GBP
Availability: InStock

Part Number:

62231031000

Voltage for this item is 400V. It has an actual flow rate of 133 Ltr/min. The maximum head for this pump is 33m.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£812.81 RRP £609.61 £508.01

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Calpeda MXH 403/A Horizontal Multistage Pump - 3 Phase - 400v is a Multistage Pump item. Voltage for this item is 400V. It has an actual flow rate of 133 Ltr/min. The maximum head for this pump is 33m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Calpeda MXH is a range of horizontal multi-stage close-coupled pumps in chrome-nickel Stainless Steel, designed for compact installations and efficient pressure boosting. The range features a robust, single-piece construction (including a barrel casing), with front suction and radial delivery at the top.

Range options

MXH: Stainless Steel construction (AISI 304)
MXHL: Stainless Steel AISI 316L versions for selected sizes
MXH EI: versions available with integrated I-MAT inverter for compact variable-speed pressure control (range dependent)

Typical applications

Water supply and pressure boosting
Hot and cold water distribution (application dependent)

Real-world product applications

Pressure boosting for water supply systems
Feeding distribution networks requiring higher pressure
Supporting irrigation and washdown water delivery
General clean-water transfer for utility systems
Supplying water to buildings and equipment

Key Product Features

For water supply
For clean liquids, without abrasives, which are non-aggressive for Stainless Steel (with appropriate seal materials, on request)
Universal pump, for domestic use, for civil and industrial applications, for
Flow rate: 133 Ltr/min
Water type: Clean or Discoloured
Voltage: 400V
Maximum head: 33m

Calpeda pumps cover a wide mix of water-moving applications, from everyday clean-water transfer through to drainage, wastewater handling, swimming pool water circulation and packaged system solutions. They are an long-standing Italian manufacturer of pumping systems, established in 1959, with product ranges used across domestic, commercial and industrial applications.

More Information
Price	£508.01
Manufacturer	Calpeda
Warranty	1 year guarantee
Electrical supply	400V
AC Power	Three Phase
Flow Rate	133 Ltr/min
Max Head	33m
Water type	Clean or Discoloured
Pump Type Filter	Multistage
Switch	None
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Next Day Delivery	No
Manufacturers Part Number	62231031000
