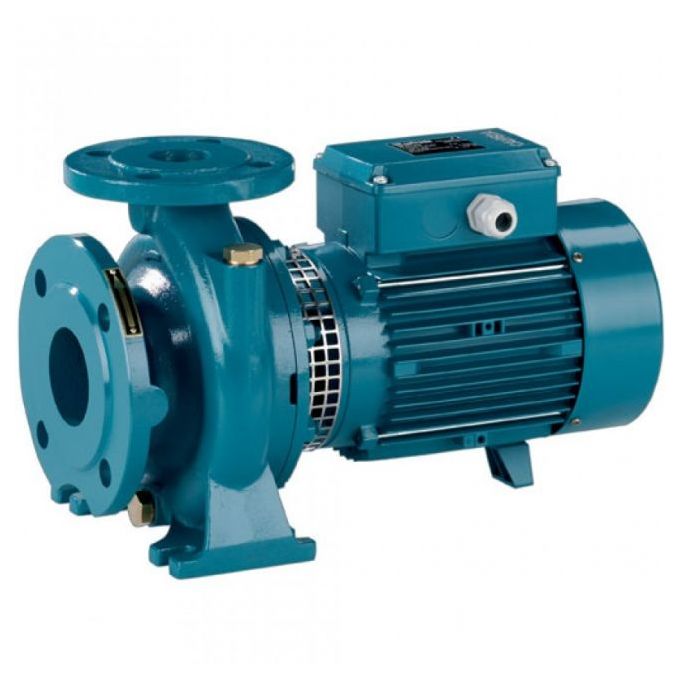

Calpeda - NM 40/20 AA Centrifugsal Pump - Single Impeller - 415V - 450 Ltr/min - 55m Head

Name: Calpeda - NM 40/20 AA Centrifugsal Pump - Single Impeller - 415V - 450 Ltr/min - 55m Head
Brand: Calpeda
SKU: 60400682000
Price: 2229.83 GBP
Availability: InStock

Part Number:

60400682000

NM: Single-impeller configuration NMD: Twin impellers mounted back-to-back, designed to balance axial thrust Connections: ISO 228/1 (BS 2779) threaded ports NM / NMD: Cast Iron pump casing and lanternn bracket B-NM / B-NMD: Bronze pump casing and lanternn

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£2,229.83 £1,858.19

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

NM: Single-impeller configuration
NMD: Twin impellers mounted back-to-back, designed to balance axial thrust
Connections: ISO 228/1 (BS 2779) threaded ports
NM / NMD: Cast Iron pump casing and lanternn bracket
B-NM / B-NMD: Bronze pump casing and lanternn bracket (pumps are delivered fully painted)

Calpeda NM and NMD pumps are single (NM) and dual (NMD) impeller pumps, with threaded connections. The range is manufactured from Cast Iron, with standard seals fitted being Carbon - Ceramic - Nitrile

Typical Applications include: -

- Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%).
- Water supply.
- Heating, air conditioning, cooling and circulation plants.
- Civil and industrial applications.
- Fire fighting applications.
- Irrigation.

The Calpeda NM 40/20 AA Centrifugsal Pump - Single Impeller - 415v is a Centrifugal Pump item. Voltage for this item is 415V. It has an actual flow rate of 450 Ltr/min. The maximum head for this pump is 55m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features

Flow rate: 450 Ltr/min
Water type: Clean or Discoloured
Voltage: 415V
Maximum head: 55m

Calpeda pumps cover a wide mix of water-moving applications, from everyday clean-water transfer through to drainage, wastewater handling, swimming pool water circulation and packaged system solutions. They are an long-standing Italian manufacturer of pumping systems, established in 1959, with product ranges used across domestic, commercial and industrial applications.

More Information
Price	£1,858.19
Manufacturer	Calpeda
Warranty	1 year guarantee
Dimensions	525mm Deep x 340mm High x 265mm Wide
Impeller Type	Single
Electrical supply	415V
AC Power	Three Phase
Flow Rate	450 Ltr/min
Max Head	55m
Water type	Clean or Discoloured
Switch	None
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	Grinder Pump
Next Day Delivery	No
Manufacturers Part Number	60400682000
