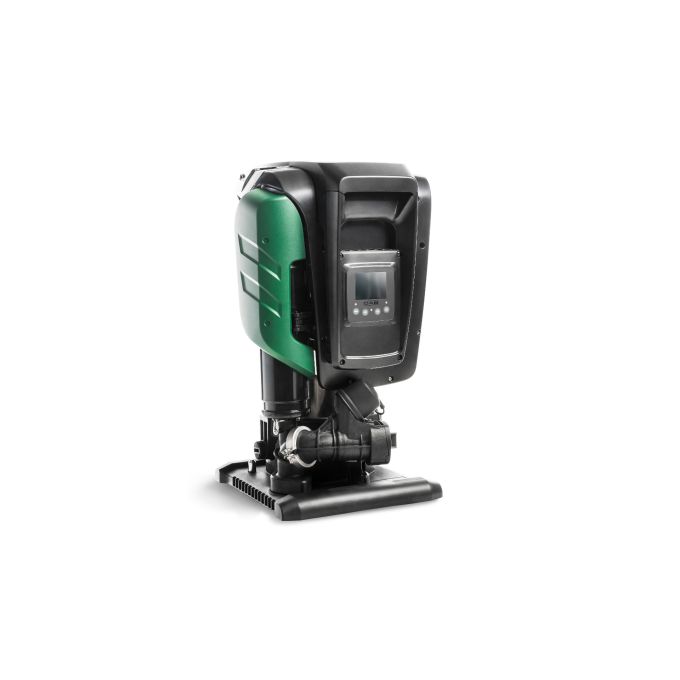

DAB - ESYBOX Max 85/120 T380-480 Single Pump Booster Set - 400V - Three Phase - 96m Head

DOCK BASE REQUIRED FOR INSTALLATION

Integrated pumping system for pressurization in commercial building service. Available in two power sizes, it consists of modular elements that allow different configurations to cover the needs of medium/large condominiums and high buildings (even over 14 floors).
Each unit consists of the single, double or triple connection base and the pumping units; a four-pumps system is available with the additional kit to
connect two double bases.
The modular construction enables to assemble the pumping groups directly at the installation site (O.S.A. concept).
The silence and compactness of dimensions allow installation in all rooms, even inhabited.

CONSTRUCTION FEATURES OF THE PUMP
Electronic vertical multi-impeller pump, with display, pressure sensors on intake and delivery, non-return valve on delivery and an integrated expansion
tank. Pump body and impellers in technopolymer with steel jacket.

CONSTRUCTION FEATURES OF THE MOTOR
Water-cooled permanent magnet motor, Stainless Steel motor jacket. Motor shaft in AISI 303 Stainless Steel.
CONSTRUCTION FEATURES OF THE ELECTRONIC
The variable frequency drive keeps the pressure constant by varying the number of motor revolutions according to the request.
The expansion module (esy I/O, available as an accessory) makes it possible to interface ESYBOX Max with the other elements of the system (BMS).
Integrated protections: protection from dry running, amperometric and abnormal voltages, overheating, freezing, anti-blocking and anti-cycling.

DCONNECT
It is possible to configure and view the operating parameters on the large ESYBOX Max display or thanks to the DConnect app and the integrated Wi-Fi
module, it is possible to do it remotely with an active DConnect service (an Internet connection is required).
From a smartphone or a tablet it is possible to control and manage system pressure, alarms and check the instantaneous and historical consumption.
With DSync technology, the user experience of ESYBOX Max is simplified. Using their smartphone or tablet, the installer interfaces with the pump that
automatically detects the language, the time and the unit of measurement applied in the Country of installation. In the case of a booster set, once the
installation of the first pump is completed, the ESYBOX Max automatically synchronize the other pumps. The DSync also allows you to connect the pump to the outside world, through the Modbus protocol.

The DAB ESYBOX Max 85/120 T380-480 Single Pump Booster Set - 400v - Three Phase is a Booster Set item. Voltage for this item is 380V. The maximum head for this pump is 96m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

The operating pressure of this is 12 Bar.

Key Product Features and Use

• Operating pressure: 12 Bar.
• Water type: Clean or Discoloured
• Voltage: 380V
• Maximum head: 96m

Real-world product applications

• Boosting water pressure to multiple outlets in a building
• Maintaining stable pressure where demand varies
• Supplying water from storage tanks to distribution pipework
• Supporting general water supply and transfer systems
• Assisting with pressure control in utility installations
