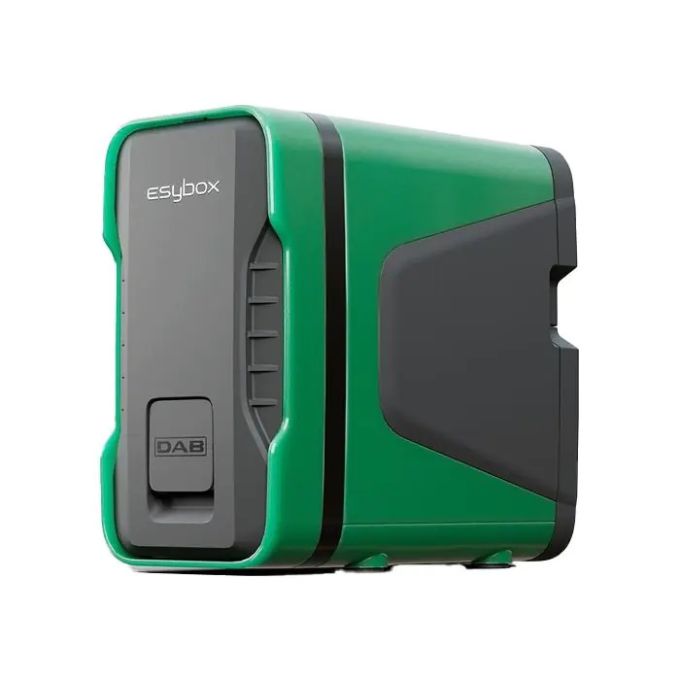

DAB - Esybox Pop - Home Booster - 6 Bar. - 240V

A fully integrated, variable speed domestic water pressurisation unit, the DAB EsyBox Pop delivers consistent and stable hydraulic performance for residential applications where space and reliability are both essential requirements. Recipient of the iF Design Award 2025, this all-in-one booster unit arrives fully pre-assembled with all core components integrated — no additional ancillary equipment is required.

Operating on a standard 240V single-phase supply, the EsyBox Pop achieves a maximum flow rate of 65 Ltrs/min and a maximum working pressure of 6 Bar. Built-in Wi-Fi (no gateway required) connects to the DAB H₂D app for remote monitoring, fault diagnostics, parameter adjustment, and real-time alert notifications. IPX5 rated for sheltered outdoor use and compatible with EsyDock and EsyWall accessories.

• All-in-one domestic water booster — fully pre-assembled, no ancillaries required
• Maximum flow rate: 65 Ltrs/min at maximum working pressure of 6 Bar
• Variable Frequency Drive (VFD) for energy-efficient, demand-matched operation
• Built-in Wi-Fi with DAB H₂D app for remote monitoring and diagnostics
• Permanent magnet motor for high-efficiency, low-maintenance performance
• Pressure, temperature, and flow sensors for continuous system monitoring
• Rotatable fittings simplify installation in confined spaces
• WRAS, NSF, and ACS approved

Key Product Features

• Maximum flow rate: 65 Ltr/min
• Maximum head: 32m
• Maximum working pressure: 6 Bar
• Maximum water temperature: 50°C
• Voltage: 240V / 1ph / 50Hz
• Inlet/discharge: 3/4"
• Cable length: 1.5m
• Dimensions: 227mm (L) x 210mm (H) x 121mm (W)
• Variable Frequency Drive (VFD)
• Permanent magnet motor
• Built-in Wi-Fi — DAB H₂D app compatible (iOS and Android)
• Non-return valve integrated
• Colour-coded LED HMI with 3-button configuration
• IPX5 rated
• WRAS / NSF / ACS approved
• iF Design Award 2025
• 3 Year manufacturer's guarantee
