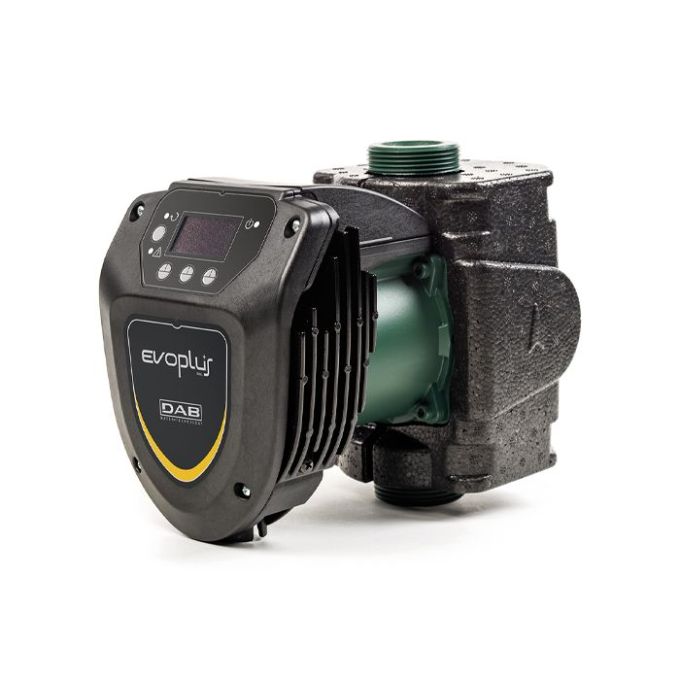

Dab - Evoplus 40/180 M Electronic Circulator - 230v - Single Phase - Threaded Connection - 4m Head

Dab - Evoplus 40/180 M Electronic Circulator - 230v - Single Phase - Threaded Connection - 4m Head is an electronic circulator for heating and chilled water circulation duties.

EVOPLUS electronic circulators is suitable for heating, ventilation and air conditioning systems for residential and commercial buildings.

In all correctly sized installations, the electronically controlled wet rotor pumps constantly ensure sufficient power and, simultaneously, lower noise emissions, greater comfort and a significant reduction in running costs. All models fitted with flanged pump body are available in both single and twin versions.

The user interface is straightforward to use.

The Evoplus 40/180 M electronic circulator from DAB is suitable for heating, ventilation, and air conditioning systems for residential and commercial buildings. The user interface is straightforward and easy to understand.

Key Product Features

• Operating range: 2 to 6m3/h
• Max Head: 4m closed valve
• Liquid temperature range: from -10 °C to +110 °C
• Pumped liquid: clean, free of solid contaminants and mineral oils, non-viscous, chemically neutral, close to the properties of water. (max. glycol contents 30%)
• Maximum working pressure: 16 bars (1600 kPa)
• Maximum ambient temperature: +40°C
• Minimum suction pressure: the values are given in the relevant tables
• Electromagnetic compatibility: EVOPLUS circulators comply with standard EN 61800-3, in category C2, in terms of electromagnetic compatibility
• Electromagnetic emissions: Residential environment (containment measures may be necessary in certain cases)
• Conducted emissions: Residential environment (containment measures may be necessary in certain cases)
• Voltage: 230V
• Max Head: 4m
• Flow Rate: 100 Ltr/min
• Connection Size: 1 1/2" Threaded
• Phase: Single Phase
