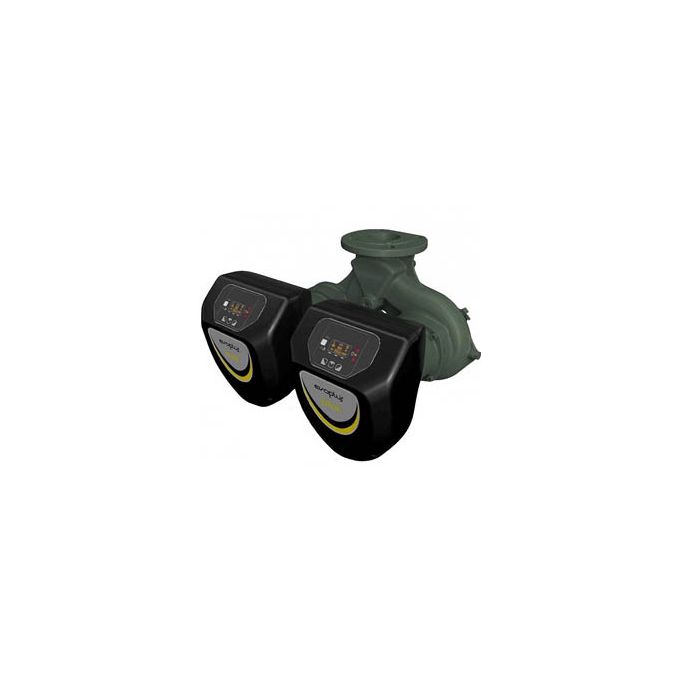

DAB - EVOPlus D 60/220.32 M Electronic Circulator - 230V - Single Phase - Flanged Connection - 150 Ltr/min

The DAB Evoplus D 60/220.32 M Electronic Circulator - 230v - Single Phase - Flanged Connection is a Circulator Pump item. Voltage for this item is 230V. It has an actual flow rate of 150 Ltr/min. The maximum head for this pump is 6m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

The operating pressure of this is 16 Bar.

Key Product Features and Use

• Operating range: 2 to 9 m3/h
• Max Head: 6m closed valve
• Liquid temperature range: from -10 °C to +110 °C.
• Pumped liquid: clean, free of solid contaminants and mineral oils, non-viscous, chemically neutral, close to the properties of water. (max. glycol contents 30%)
• Maximum working pressure: 16 Bar.s (1600 kPa)
• Standard flanging: DN 32, DN 40 PN 6 / PN 10 / PN 16 (4 slots)
• Maximum ambient temperature: +40°C.
• Minimum suction pressure: the values are given in the relevant tables
• Electromagnetic compatibility: EVOPLUS circulators comply with standard EN 61800-3, in category C2, in terms of electromagnetic compatibility
• Electromagnetic emissions: Residential environment (containment measures may be necessary in certain cases)
• Conducted emissions: Residential environment (containment measures may be necessary in certain cases)
• Flow rate: 150 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 230V

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency
