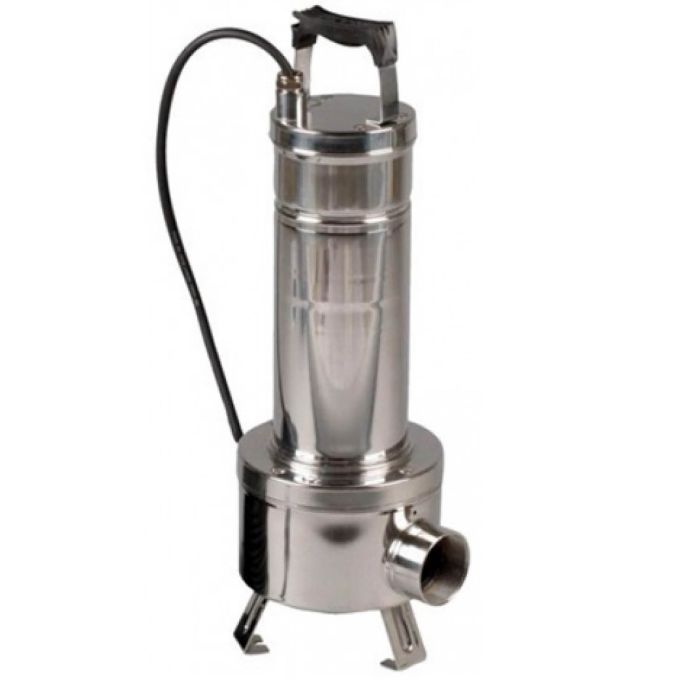

DAB - FEKA VS 750 M-NA Submersible Pump - Manual - 230V - 533 Ltr/min - 14m Head

Name: DAB - FEKA VS 750 M-NA Submersible Pump - Manual - 230V - 533 Ltr/min - 14m Head
Brand: Dab
SKU: DAB-103042330
Price: 515.65 GBP
Availability: InStock

Part Number:

DAB-103042330

Includes and benefits The DAB FEKA VS 750 M-NA Submersible Pump - Manual - 230v is a Submersible product. Voltage for this item is 230V.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£678.49 RRP £515.65 £429.71

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Includes and benefits

The DAB FEKA VS 750 M-NA Submersible Pump - Manual - 230v is a Submersible product. Voltage for this item is 230V. It is supplied with a 10m cable. It has an actual flow rate of 533 Ltr/min. The maximum head for this pump is 14m.

DAB FEKA is a family of submersible sewage and waste-water pumps for draining and lifting applications (model dependent).

In the FEKA range, stainless-steel designs with vortex impellers are used for handling residential sewage/waste water with specified solids passage (variant dependent).

Typical applications

Residential sewage and waste water lifting
Effluent drainage and sump/tank emptying (model dependent)
Waste water applications requiring solids handling (variant dependent)

Key Product Features and Use

Motor is dry, asynchronous, sealed and cooled by the pumped liquid
Rotor mounted on greased for-life ball bearings, oversized and selected to guarantee greater noise reduction and duration
Thermo-amperometric protection as standard for single-phase version, and the user's responsibility for the three-phase version
Constantly active capacitor on the single-phase version
Construction in accordance with the IEC 2-3 IEC 61-69 (EN 60335-2-41) standards
Motor protection class: IP 68 — Insulation class: F
Standard voltage: 220-240V 50Hz Single-phase – 400V 50Hz Three-phase
Continual running with liquid at 35°C and pump completely submerged
The single-phase version can be supplied with float for automatic function
Power supply cable: 10 metres of H07RN-F cable (with Shuko plug for the single-phase version)
Flow rate: 533 Ltr/min
Water type: Sewage
Maximum head: 14m
Cable length: 10m

Maximum flow 533 litres per minute, maximum head 14m
50mm free passage
EN 12050-2 Compliance certified for waste water
Appropriate for sewer water and waste water in general and non aggressive
Pump body, seal housing cover, motor casing, cap with handle made of Stainless Steel
Vortex impeller in cast steel
Maximum immersion depth 10m
Available in 230v manual and automatic and 415v manual
2 inch horizontal discharge, female threaded BSP connection
Two year warranty

Real-world product applications

Removing water from pits, sumps, and collection points
Supporting drainage and water transfer duties
Dewatering flooded areas and low-lying spaces
Transferring water from tanks and containers
Assisting with general submersible pumping tasks

DAB Pumps is an Italian water-pump manufacturer founded in 1975. They produce reliable products, technically advanced, easy to install and efficient, ensuring high energy savings in heating and air conditioning, water supply and pressurisation, irrigation and gardening, use of rain water, draining, collection and disposal of waste water, circulation and filtration of swimming pool water. All our DAB products, including spare parts, are guaranteed against construction material and processing defects for a period of 1 year from purchase, terms apply.

More Information
Price	£429.71
Manufacturer	Dab
Warranty	1 year guarantee
Electrical supply	230V
AC Power	Single Phase
Cable length	10m
Flow Rate	533 Ltr/min
Max Head	14m
Pump Operation	Manual (without float switch)
Water type	Sewage
Pump Type Filter	Submersible
Switch	None
Duty Type	Domestic
Submersible vs Surface Mounted	Submersible
Next Day Delivery	No
Manufacturers Part Number	103042330
