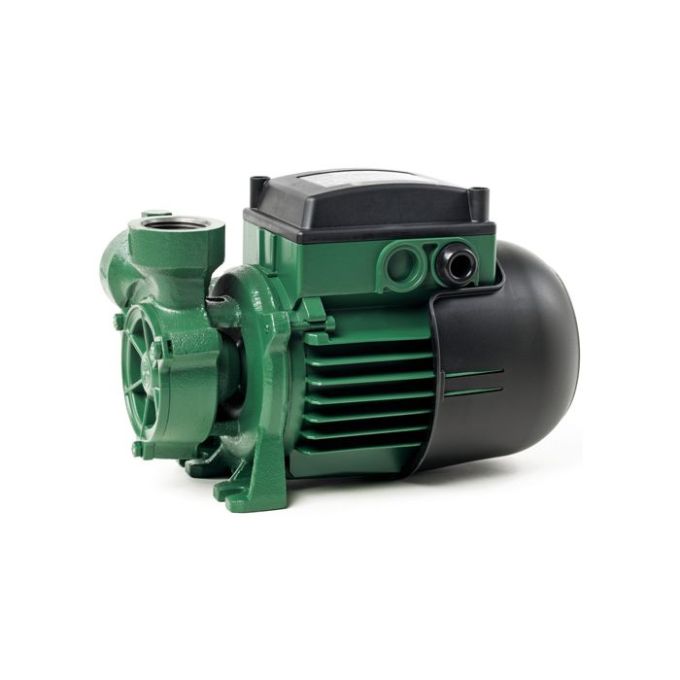

DAB - KPS 30/16 MB Centrifugal Peripheral Pump - 240V - Single Phase - 50 Ltr/min - 84m Head

Product Applications

The DAB KPS 30/16 MB is a centrifugal peripheral pump appropriate for domestic installations, water supply systems, small gardening and irrigation applications, draining cisterns and even for some small industrial applications.

Construction Includes Of The Pump

Brass pump body and motor support for KP 60/6 and KP 60/12. Pump body with radial suction for KP and KPS; front suction for KPF. Cast Iron support with brass wear disc for KPS 30/16 and KP 38/18. KPS 30/16 is available on request with bronze pump body and support. Brass impeller. Carbon/ceramic mechanical seal.

Construction Features Of The Motor

Closed asynchronous type, external ventilation cooling. Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability. Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions. For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations. Construction according to CEI 2-3 and CEI 61-69 (EN 60335-2-41).

The DAB KPS 30/16 MB Centrifugal Peripheral Pump - 240v - Single Phase - 50 Ltr/min. is a Peripheral Pump item. Voltage for this item is 240V. It has an actual flow rate of 50 Ltr/min. The maximum head for this pump is 84m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

• Flow rate: 50 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 240V
• Maximum head: 84m

Real-world product applications

• General water transfer between tanks and systems
• Supplying water for domestic or light commercial use
• Supporting irrigation and washdown duties
• Circulating or transferring water in utility applications
• Assisting with general pumping and transfer tasks
