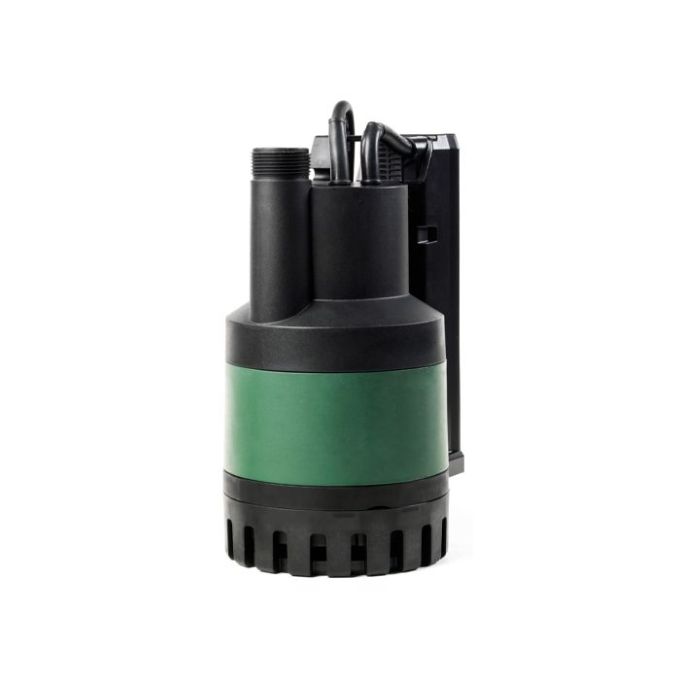

DAB - NOVA UP 300M-AE Submersible Pump - 240V - Single Phase - 166 Ltr/min - 8m Head

The DAB NOVA UP is a compact submersible drainage pump designed for reliable sump, pit and flood-water removal, delivering up to 166 Ltr/min at 8m head on a 240V single-phase supply. Built with a technopolymer body and stainless steel motor components, it offers a durable, lightweight solution for dirty water drainage duties.

Product Applications

The vertical delivery draining submersible pump is appropriate for domestic automatically operated fixed applications, for draining basements and garages that are subject to flooding. This version is particularly suited for narrow well installation requiring automatic suction up to 2/3 mm. Thanks to its compact, easy to handle shape, it may also be applied as a portable pump for emergencies such as lifting water from tanks or rivers, emptying swimming pools, fountains, excavations, and pedestrian subways. It is also ideal for gardening, and hobby applications in general. This pump can be utilised with liquids containing solid particles of up to 10 mm in size. The electronic level selector allows fixed installation, ensuring automatic operation, and enabling the selection of the level of the liquid for automatic start. With removable filter, it is capable of suction of up to a minimum of 2/3 mm (filter removed)

Construction Includes Of The Pump

Hydro resistant technopolymer pump body, cover, and suction grid. Stainless Steel motor, roto shaft, and bolts and screws. Threefold seal with interposed rings with oil pre-chamber.

Construction Features Of The Motor

Submersible type continuous duty asynchronous motor.Stator enclosed in airtight Stainless Steel casing, with an outer cover that protects the wiring and the capacitor. Rotor running on permanently lubricatedball bearings, oversized to ensure low noise and durability. Built-in thermal-amperometric protection and permanently connected capacitor.

The DAB NOVA UP 300M-AE Submersible Pump - 240v - Single Phase - 166 Ltr/min. is a Submersible product. Voltage for this item is 240V. It has an actual flow rate of 166 Ltr/min. The maximum head for this pump is 8m.

Key Product Features and Use

• Flow rate: 166 Ltr/min
• Water type: Dirty Water
• Voltage: 240V
• Maximum head: 8m

Real-world product applications

• Removing water from pits, sumps, and collection points
• Supporting drainage and water transfer duties
• Dewatering flooded areas and low-lying spaces
• Transferring water from tanks and containers
• Assisting with general submersible pumping tasks
