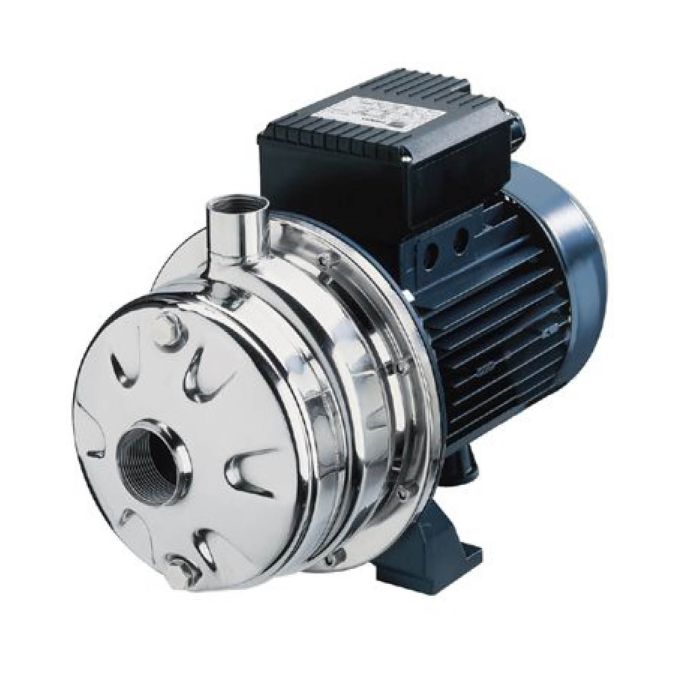

Ebara - 2CDXM 70/12 Centrifugal Pump - Single Phase - 230V

The Ebara - 2 CDXM 70/12 Centrifugal Pump - Single Phase - 230V is a Twin impeller centrifugal pump with hydraulics in AISI 304 and AISI 316 Stainless Steel, with radial impeller, with hydraulics entirely in pressed AISI 304 or AISI 316 (L version).
The double impeller makes for a wider performance range than the single-impeller version.
The components of the 2 CDX(L) electric pump are obtained through the renowned hydroforming process, which guarantees sturdiness, hydraulic efficiency and reliability.
The process uses a high-pressure fluid (up to 1200 Bar.) to form the metal.
The hydraulic fluid, in our case water, with increasing pressure pushes the Stainless Steel to copy the shapes of the template until it comes into contact with the internal walls of the matrix that forms the mould.
This exclusive configuration, which combines the power of a press with the force of water, has significant advantages over traditional processes:
Perfectly smooth shape
Highly smooth running
No welding points
These features guarantee high corrosion resistance, High efficiency, with performance of over 80% and low leakage.
2 CDX(L) electric pumps, thanks to their small size, can be positioned even in narrow or difficult to reach spaces.
The versatility of these electric pumps is due to the different types of mechanical seals that can be applied. For further technical information see the datasheet

Suitability:

• Domestic pressurisation
• Small-scale garden irrigation
• Washing
• Water treatment
• Cooling towers
• Handling of clean water in general

Real-world product applications

• General water transfer between tanks and systems
• Supplying water for domestic or light commercial use
• Supporting irrigation and washdown duties
• Circulating or transferring water in utility applications
• Assisting with general pumping and transfer tasks

Key Product Features

• Connection Size: 1 1/4 inch
• Flow Rate (Actual): 80 Ltr/min
• Type of Impeller: Twin
• Max Head: 45m
• Voltage: 230V
• Compact dimensions,
• Sturdy construction,
• Available in
• AISI 316

Product Range Technical Data:

• Flow rate: from 1.2 to 12.6 m³/h
• Total head: from 71.5 to 27 m
• Max. working pressure: 8 Bar.
• Max. temperature of the liquid: -5°C to · +90°C for std versions
• -5°C to · +110°C for H, HS, HW, HSW versions
• -5°C to · +120°C for E versions
• Poles: 2
• Insulation class: F
• Protection degree: IP55
• Voltage: Single-phase 1~230V ±10%
• Three-phase 3~230/400V ±10%

Materials Spec:

• Pump body: Stainless Steel AISI 304 (EN 1.4301) (2 CDX)
• Stainless Steel AISI 316 L (EN 1.4404) (2 CDXL)
• Impeller: Stainless Steel AISI 304 (EN 1.4301) (2 CDX)
• Stainless Steel AISI 316 L (EN 1.4404) (2 CDXL)
• Shaft: Stainless Steel AISI 304 (EN 1.4301) (2 CDX)
• Stainless Steel AISI 316 L (EN 1.4404) (2 CDXL) and 2 CDX 70/20, 120/20 -30-40, 200/30-40-50
• Mechanical seal: Standard = Ceramic/Carbon/NBR
• H = Graphite/Ceramic/FPM
• HS = Silicon Carbide/Silicon Carbide/FPM
• HW = Tungsten Carbide/Tungsten Carbide/FPM
• HSW = Silicon Carbide/Tungsten Carbide/FPM
• E = Graphite/Ceramic/EPDM
• Motor support: Aluminium (up to and including 1.5 k W), Cast Iron (2.2 k W and above)
