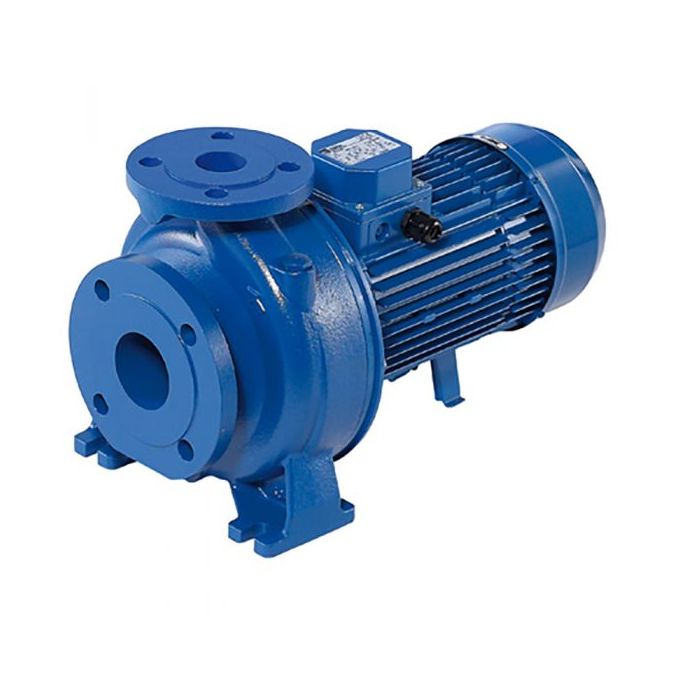

Ebara - 3D/I 32-160/1.5 Centrifugal Pump - Three Phase - 333 Ltr/min - 400V - Cast Iron

The Ebara - 3 D/I 32-160/1.5 Centrifugal Pump - Three Phase - 333 Ltr/min. - 400V is a Standardised Cast Iron centrifugal pump with AISI 304 and AISI 316 steel impeller, axial suction and radial discharge with 2 or 4 poles motors. The 3 D SERIES is equipped with Back pull-out design that allows the motor, coupling, bracket and impeller to be removed without compromising the pump body or disassembling the piping.
The many types of mechanical seal that can be mounted on the electric pumps allow the use of special materials. Therefore, they can adapt to different needs based, for example, on the type of liquid, temperature or other factors of use, covering, depending on the model, a wide selection of temperatures.
The 3 D SERIES is divided into three versions:
3 D SERIES monoblock with extended shaft
3 DS SERIES with rigid coupling and IEC Standard motor
3 DP SERIES with elastic coupling and IEC Standard motor
For further technical information see the datasheet

Suitability:

• Heating, ventilation and air-conditioning systems
• liquid supply for civil, agricultural and industrial plants
• Pressurisation
• Firefighting systems
• Industrial liquid handling systems
• Irrigation for farms, sports facilities
• Washing systems

Real-world product applications

• General water transfer between tanks and systems
• Supplying water for domestic or light commercial use
• Supporting irrigation and washdown duties
• Circulating or transferring water in utility applications
• Assisting with general pumping and transfer tasks

Key Product Features

• Flow Rate (Actual): 333 Ltr/min
• Type of Impeller: Single
• Voltage: 400V
• Sturdy construction,
• High efficiency,
• Impeller in Stainless Steel

Product Range Technical Data:

• Flow rate: up to 138 m³/h
• Total head: up to 70,0 m
• Max. working pressure: 10 Bar.
• Max. temperature of the liquid: -5°C to · +110°C for H, HS, HW, HSW versions
• -5°C to · +90°C for standard version
• -20°C to · +120°C for E version
• MEI: > 0.4
• Poles: 2 and 4
• Insulation class: F (B for high temperature)
• Protection degree: IP55
• Voltage: Single-phase 1~230V ±10%
• Three-phase 3~230/400V ±10% (up to 4k W included)
• Three-phase 3~400/690 V ±10% (from 5,5k W and above)

Materials Spec:

• Pump body: Cast Iron
• Impeller: AISI 304 (EN 1.4301)
• AISI 316 (EN 1.4404) precision-cast for 3 D SERIES 65
• Shaft: AISI 304 (EN 1.4301)
• Mechanical seal: Standard = Ceramic/Carbon/NBR
• H = Graphite/Ceramic/FPM
• HS = Silicon Carbide/Silicon Carbide/FPM
• HW = Tungsten Carbide/Tungsten Carbide/FPM
• HSW = Silicon Carbide/Tungsten Carbide/FPM
• E = Graphite/Ceramic/EPDM
• Motor support: Cast Iron for 32-200/3, 15, 18.5 and 22 k W models
• Aluminium for the rest of the range

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.
