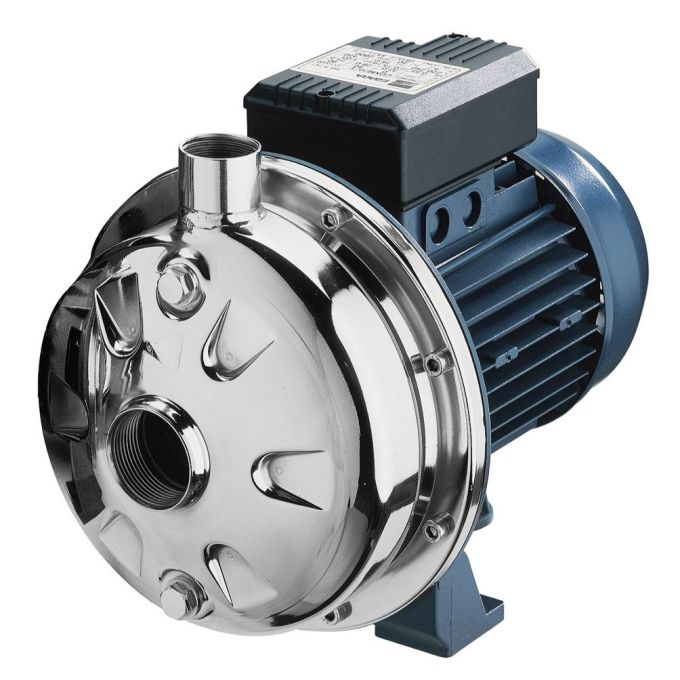

Ebara - CDXL/I 200/12 IE3 Single Stage Centrifugal Pump - Three Phase - 250 Ltr/min - 400V

Name: Ebara - CDXL/I 200/12 IE3 Single Stage Centrifugal Pump - Three Phase - 250 Ltr/min - 400V
Brand: Ebara
SKU: 1635108004I
Price: 1044.04 GBP
Availability: InStock

Part Number:

1635108004I

The Ebara - CDXL/I 200/12 IE3 Single Stage Centrifugal Pump - Three Phase - 250 Ltr/min.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,657.20 RRP £1,044.04 £870.03

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Ebara - CDXL/I 200/12 IE3 Single Stage Centrifugal Pump - Three Phase - 250 Ltr/min. - 400V is a Single impeller centrifugal pump with hydraulics in AISI 304 and AISI 316 stainless steel, with radial impeller, with hydraulics entirely in pressed AISI 304 or AISI 316 (L version), with hydroformed components, which ensure sturdiness, hydraulic efficiency and reliability.
The hydroforming process uses a high-pressure fluid (up to 1200 Bar.) to form the metal.
The hydraulic fluid, in our case water, with increasing pressure pushes the stainless steel to copy the shapes of the template until it comes into contact with the internal walls of the matrix that forms the mould. Hydroforming, which combines the power of a press with the force of water, has significant advantages over traditional processes, namely:
Perfectly smooth shape
Highly smooth running
No welding points
These features ensure elevated corrosion resistance, elevated efficiency with performance above 80% and low losses.
The small size of CDX(L) electric pumps makes them suitable for narrow or difficult to reach spaces.
The versatility of these electric pumps is due to the different types of mechanical seals that can be applied. For further technical information see the datasheet

Suitability:

Domestic pressurisation
Small-scale garden irrigation
Washing
Water treatment
Cooling towers
Handling of clean water in general

Real-world product applications

General water transfer between tanks and systems
Supplying water for domestic or light commercial use
Supporting irrigation and washdown duties
Circulating or transferring water in utility applications
Assisting with general pumping and transfer tasks

Key Product Features

Flow Rate (Actual): 250 Ltr/min
Type of Impeller: Single
Voltage: 400V
Compact dimensions,
Sturdy construction,
Available in
AISI 316

Product Range Technical Data:

Flow rate: from 1.2 to 15 m³/h
Total head: from 37.5 to 12.5 m
Max. working pressure: 8 Bar.
Max. temperature of the liquid: -5°C to · +90°C for std versions
-5°C to · +110°C for H, HS, HW, HSW versions
-5°C to · +120°C for E versions
MEI: > 0.4
Poles: 2
Insulation class: F
Protection degree: IP55
Voltage: Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10%

Materials Spec:

Pump body: Stainless steel AISI 304 (EN 1.4301) (CDX)
Stainless steel AISI 316 L (EN 1.4404) (CDXL)
Impeller: Stainless steel AISI 304 (EN 1.4301) (CDX)
Stainless steel AISI 316 L (EN 1.4404) (CDXL)
Shaft: Stainless steel AISI 303 (EN 1.4305) (CDX)
Stainless steel AISI 316 L (EN 1.4404) (CDXL)
Mechanical seal: Standard = Ceramic/Carbon/NBR
H = Graphite/Ceramic/FPM
HS = Silicon Carbide/Silicon Carbide/FPM
HW = Tungsten Carbide/Tungsten Carbide/FPM
HSW = Silicon Carbide/Tungsten Carbide/FPM
E = Graphite/Ceramic/EPDM
Motor support: Aluminium

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.

More Information
Price	£870.03
Manufacturer	Ebara
Warranty	1 year guarantee
Impeller Type	Single
Electrical supply	400V
AC Power	Three Phase
Flow Rate	250 Ltr/min
Water type	Clean or Discoloured
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	Centrifugal Pump
Inlet Connection	UNI ISO 228-1
Outlet Connection	UNI ISO 228-1
Next Day Delivery	No
Manufacturers Part Number	1635108004I
