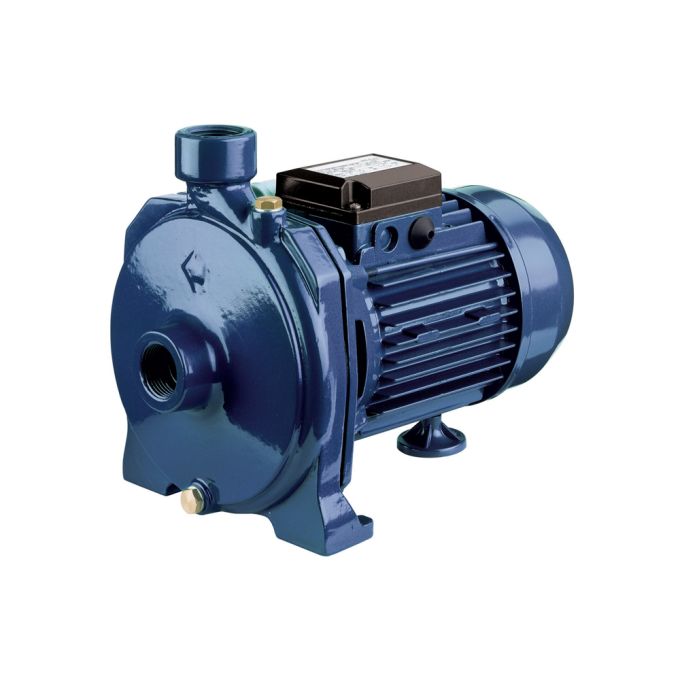

Ebara - CMB/I 1.00 T IE3 Centrifugal Pump - Three Phase - 250 Ltr/min - 400V

The Ebara - CMB/I 1.00 T IE3 Centrifugal Pump - Three Phase - 250 Ltr/min. - 400V is a Single-impeller centrifugal pump with cast iron body, available in different models: CMA - CMB - CMC - CMD.
Depending on the model, the impellers, shafts and motor mount can be made of different materials (see technical data table). Their compact size makes CMA-B-C centrifugal electric pumps straightforward to install even when spaces are narrow or difficult to reach.
Their sturdy and dependable structure allows for high performance in all water handling applications.
For further technical information see the datasheet

Suitability:

• Pressurisation of domestic installations
• Small-scale irrigation
• Washing systems and vehicle washing
• Handling of non-aggressive liquids for civil and industrial use

Real-world product applications

• General water transfer between tanks and systems
• Supplying water for domestic or light commercial use
• Supporting irrigation and washdown duties
• Circulating or transferring water in utility applications
• Assisting with general pumping and transfer tasks

Key Product Features

• Flow Rate (Actual): 250 Ltr/min
• Voltage: 400V
• Available with brass impeller

Product Range Technical Data:

• Flow rate: from 1.2 to 60.5 m³/h
• Total head: from 5.2 to 57.0 m
• Max. working pressure: 6 bar. for CMA 0.50-0.75-1.00, CMB 0.75-1.00-1.50-2.00-3.00 and CMC
• 8 bar. for CMA 1.50-2.00-3.00 and CMB 4.00-5.50
• Max. temperature of the liquid: +40°C for CMA 0.50-0.75-1.00
• +90°C for the rest of the range
• MEI: > 0.4
• Poles: 2
• Insulation class: F
• Protection degree: IP44
• Voltage: Single-phase 1~230V ±10%
• Three-phase 3~230/400V ±10%

Materials Spec:

• Pump body: Cast iron
• Impeller: in PPE+PS with glass fibres for CMA 0.50 - 0.75 - 1.00
• in brass for CMA 1.50 - 2.00 - 3.00
• CMB 2.00 - 3.00 - 4.00 - 5.50
• in cast iron for CMB 0.75 - 1.00 - 1.50, CMC
• Shaft: in AISI 416 (EN 1.4005) (integral) for CMA 0.50
• in AISI 303 (EN 1.4305) (part in contact with liquid) for CMA 0.75-1.00-1.50-2.00-3.00
• CMB 0.75-1.00-1.50-2.00-3.00
• CMC 0.75-1.00
• in AISI 304 (EN 1.4301) (part in contact with liquid) for CMB 4.00-5.50
• Mechanical seal: Ceramic/Carbon/NBR (standard)
• Motor support: in aluminium for CMA 0.50-0.75-1.00
• CMB 0.75-1.00
• CMC 0.75-1.00
• in cast iron for the rest of the range
