Ebara - DWC-V/I 500/3,0 IE3 Centrifugal Pump - Three Phase - 750 Ltr/min - 400V

Name: Ebara - DWC-V/I 500/3,0 IE3 Centrifugal Pump - Three Phase - 750 Ltr/min - 400V
Brand: Ebara
SKU: 2190110004I
Price: 1391.8 GBP
Availability: InStock

Part Number:

2190110004I

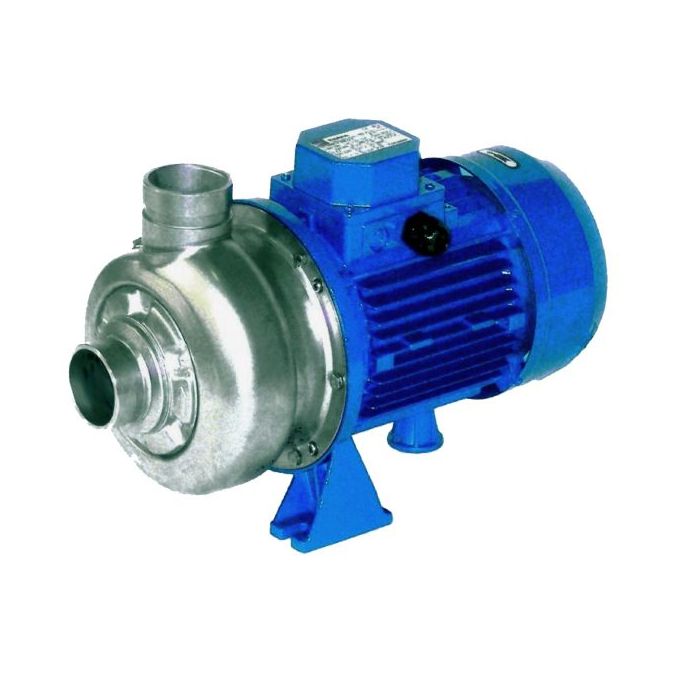

The Ebara - DWC-V/I 500/3,0 IE3 Centrifugal Pump - Three Phase - 750 Ltr/min. - 400V is a Centrifugal pump fitted with a closed radial flow impeller in AISI 304 stainless steel.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£2,209.20 RRP £1,391.80 £1,159.83

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Ebara - DWC-V/I 500/3,0 IE3 Centrifugal Pump - Three Phase - 750 Ltr/min. - 400V is a Centrifugal pump fitted with a closed radial flow impeller in AISI 304 stainless steel.
It is sturdily built, made using the exclusive hydroforming process, and is equipped with increased discharge due to the absence of additional fittings.
It is equipped with an insulating shell as standard, which prevents condensation inside the system, and the standard mechanical seal is in Ceramic/Carbon/EPDM. The DWC centrifugal pump is available with special seals for heavier duty and higher liquid temperature limits.
The choice of connections, Victaulic (DWC-V) and threaded (DWC-N), facilitates setup.
For further technical information see the datasheet

Suitability:

Cooling, air conditioning and heating systems
Chillers
Washing systems
Civil and industrial liquid supply

Real-world product applications

General water transfer between tanks and systems
Supplying water for domestic or light commercial use
Supporting irrigation and washdown duties
Circulating or transferring water in utility applications
Assisting with general pumping and transfer tasks

Key Product Features

Flow Rate (Actual): 750 Ltr/min
Type of Impeller: Single
Voltage: 400V
Compact dimensions,
Sturdy construction,
Silent

Product Range Technical Data:

Flow rate: from 6 to 45 m³/h
Total head: from 6.2 to 25 m
Max. working pressure: 8 Bar.
Max. temperature of the liquid: -15°C to · +120°C for std versions
-15°C to · +110°C for H, HS, HW, HSW versions
Poles: 2
Insulation class: F
Protection degree: IP55
Voltage: Three-phase 3~230/400V ±10%

Materials Spec:

Pump body: Stainless steel AISI 304 (EN 1.4301)
Impeller: Stainless steel AISI 304 (EN 1.4301)
Shaft: Stainless steel AISI 304 (EN 1.4301) (part in
contact with the liquid)
Mechanical seal: Standard = Ceramic/Carbon/EPDM
H = Graphite/Ceramic/FPM
HS = Silicon Carbide/Silicon Carbide/FPM
HW = Tungsten Carbide/Tungsten Carbide/FPM
HSW = Silicon Carbide/Tungsten Carbide/FPM
Motor support: Aluminium

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.

More Information
Price	£1,159.83
Manufacturer	Ebara
Warranty	1 year guarantee
Impeller Type	Single
Electrical supply	400V
AC Power	Three Phase
Flow Rate	750 Ltr/min
Water type	Moderate Aggressive Solutions
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	Centrifugal Pump
Next Day Delivery	No
Connection Type	Victaulic ®
Manufacturers Part Number	2190110004I
