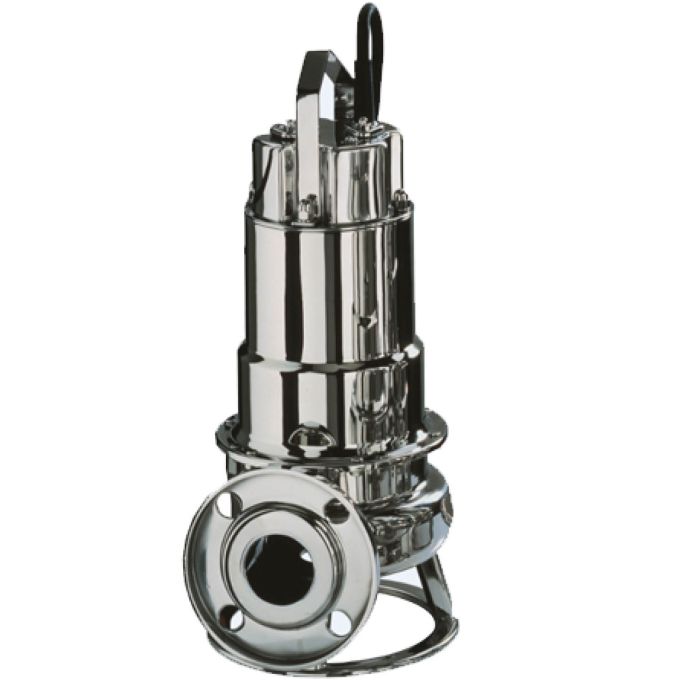

Ebara - DWF M 150 Submersible Pump - Channel Impeller - Without Float - 230V

Name: Ebara - DWF M 150 Submersible Pump - Channel Impeller - Without Float - 230V
Brand: Ebara
SKU: EB-158 807 2621
Price: 1185.41 GBP
Availability: InStock

Part Number:

EB-158 807 2621

The Ebara - DWF M 150 Submersible Pump - Channel Impeller - Without Float - 230V is a AISI 304 stainless steel submersible pump and single-channel impeller (DW) or vortex impeller (DW VOX) for fixed and mobile installations.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,881.60 RRP £1,185.41 £987.84

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Ebara - DWF M 150 Submersible Pump - Channel Impeller - Without Float - 230V is a AISI 304 stainless steel submersible pump and single-channel impeller (DW) or vortex impeller (DW VOX) for fixed and mobile installations. The DW - DW VOX electric pump has two versions for connection to pipes:
Threaded for DW - DW VOX
Flanged for DWF - DW VOXF
For further technical information see the datasheet

Suitability:

Evacuation of civil and industrial wastewater
Drainage of wells or excavations
Drainage of underwater areas
General Handling of liquids, including those with solid and/or filamentary substances in suspension
Emptying of seepage liquid
Handling of dirty wastewater (sanitary services)
Emptying of cesspits

Real-world product applications

Removing water from pits, sumps, and collection points
Supporting drainage and water transfer duties
Dewatering flooded areas and low-lying spaces
Transferring water from tanks and containers
Assisting with general submersible pumping tasks

Key Product Features

Connection Size: 2 inch
Flow Rate (Actual): 700 Ltr/min
Max Head: 15m
Voltage: 230V
Possibility to use in fixed and mobile installations

Product Range Technical Data:

Flow rate: up to 54 m³/h for DW
up to 48 m³/h for DW VOX
Total head: up to 20 m for DW
up to 15.7 m for DW VOX
Max. temperature of the liquid: +40°C
Poles: 2
Max. solids passage: 50 mm
Insulation class: F
Protection degree: IPX8
Voltage: Single-phase 1~230V ± 10%
Three-phase 3~400V ±10%
Max. immersion: 7 m with 10 m cable

Materials Spec:

Pump body: Stainless steel AISI 304 (EN 1.4301)
Impeller: Stainless steel AISI 304 (EN 1.4301)
Shaft: Stainless steel AISI 303 (EN 1.4305) (part in contact with liquid)
Mechanical seal: upper part in Carbon/Ceramic/NBR (motor side)
lower part in Silicon Carbide/NBR (pump side)

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.

More Information
Price	£987.84
Manufacturer	Ebara
Warranty	1 year guarantee
Electrical supply	230V
AC Power	Single Phase
Cable length	10m
Flow Rate	700 Ltr/min
Max Head	15m
Pump Operation	Manual (without float switch)
Water type	Sewage
Pump Type Filter	Submersible
Switch	None
Duty Type	Commercial
Submersible vs Surface Mounted	Submersible
Next Day Delivery	No
Connection Size	2 inch
Manufacturers Part Number	1588071621A
