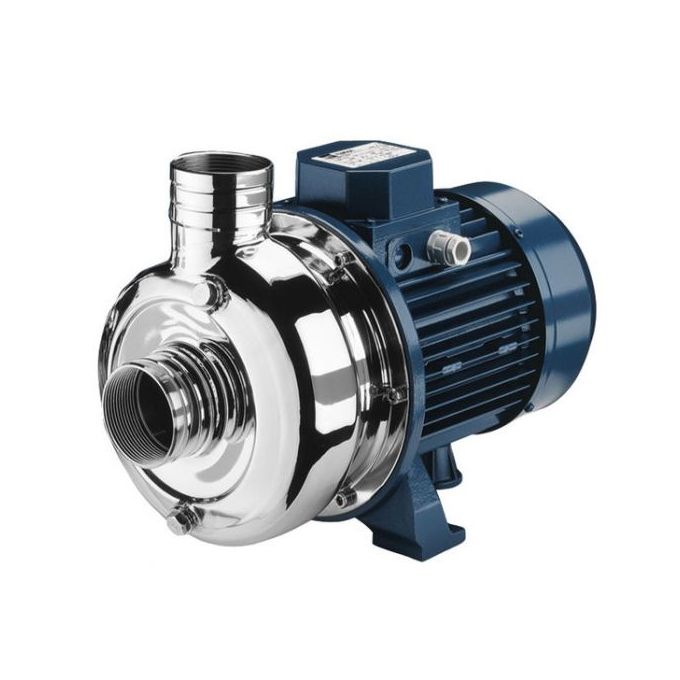

Ebara - DWO/I 150 IE3 Centrifugal End Suction Pump - Three Phase - 550 Ltr/min - 400V

Name: Ebara - DWO/I 150 IE3 Centrifugal End Suction Pump - Three Phase - 550 Ltr/min - 400V
Brand: Ebara
SKU: 1579070004I
Price: 858.06 GBP
Availability: InStock

Part Number:

1579070004I

The Ebara - DWO/I 150 IE3 Centrifugal End Suction Pump - Three Phase - 550 Ltr/min.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,362.00 RRP £858.06 £715.05

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Ebara - DWO/I 150 IE3 Centrifugal End Suction Pump - Three Phase - 550 Ltr/min. - 400V is a Centrifugal pump fitted with an open radial flow impeller in AISI 304 stainless steel, also making it ideal for pumping liquids that are not completely clean, but with solid parts up to 19 mm in diameter.
The DWO electric pump's pressed AISI 304 pump body is obtained through the hydroforming process, providing sturdy construction, hydraulic efficiency and reliability.
For further technical information see the datasheet

Suitability:

Washing of vegetables, meat, fish and molluscs
Industrial end-of-cycle washing systems, washing and surface finishing of metal pieces, cans, washing of bottles, jars, glass containers, crates, and baskets, etc.
Communal dishwashers, glasswashers, cup washers, spray booths
Liquid handling, evacuation and transfer

Real-world product applications

General water transfer between tanks and systems
Supplying water for domestic or light commercial use
Supporting irrigation and washdown duties
Circulating or transferring water in utility applications
Assisting with general pumping and transfer tasks

Key Product Features

Flow Rate (Actual): 550 Ltr/min
Type of Impeller: Single
Voltage: 400V
Compact dimensions,
Sturdy construction,
Silent

Product Range Technical Data:

Flow rate: from 6 to 66 m³/h
Total head: 17.5 to 5.1 m
Max. working pressure: 8 Bar.
Max. temperature of the liquid: -5°C to · +90°C for std versions
-5°C to · +110°C for H, HS, HW, HSW versions
Poles: 2
Max. solids passage: 19 mm
Insulation class: F
Protection degree: IP55
Voltage: Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10%

Materials Spec:

Pump body: Stainless steel AISI 304 (EN 1.4301)
Impeller: Stainless steel AISI 304 (EN 1.4301)
Shaft: Stainless steel AISI 304 (EN 1.4301)
Mechanical seal: Standard = Ceramic/Carbon/NBR
H = Graphite/Ceramic/FPM
HS = Silicon Carbide/Silicon Carbide/FPM
HW = Tungsten Carbide/Tungsten Carbide/FPM
HSW = Silicon Carbide/Tungsten Carbide/FPM
Motor support: Aluminium

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.

More Information
Price	£715.05
Manufacturer	Ebara
Warranty	1 year guarantee
Impeller Type	Single
Electrical supply	400V
AC Power	Three Phase
Flow Rate	550 Ltr/min
Water type	Clean or Discoloured
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	End Suction Pump
Next Day Delivery	Yes
Manufacturers Part Number	1579070004I

Data Sheet(s)
