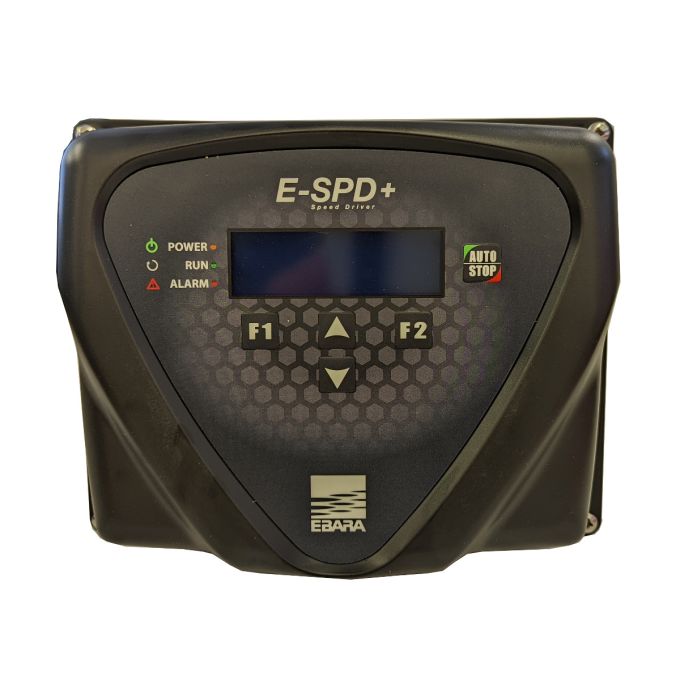

Ebara - E-SPD TT 4000 Plus Pump Control Unit - Three Phase - Max 4KW - 400V

The Ebara - E-SPD TT 4000 Plus Pump Control Unit - Three Phase - Max 4 KW - 400V is a New generation air-cooled inverter, which can be installed on the pump motor terminal board.
EBARA has introduced E-SPD+ to better meet the requirements in terms of maximum energy saving, pressure variations, reduction of operating costs and acoustic comfort.
E-SPD+ significantly extends the range of applications and functionalities; the models available are as follows:
E-SPD+ 2200 MT for installation on 230V three-phase pumps with up to 2.2k W nominal power
E-SPD+ 4000 MT for installation on 400V three-phase pumps with up to 4k W nominal power
E-SPD+ 4000 TT (M112) for installation on 4 poles 400V three-phase pumps with 4k W nominal power
E-SPD+ 11000 TT for installation on three-phase 400V pumps with up to 11k W nominal power
The special features of the new solution are:
Highly flexible, enabling it to be used with centrifugal pumps, both horizontal and vertical, and courtesy of the wall installation kit (optional), the E-SPD+ can also be combined with submerged pumps.
versatility of design, which enables it to be installed on EBARA pump motors from MEC 71 up to MEC 132
Innovative LCD display for viewing and changing operating parameters and for keeping track of the history of the key parameters, faults and alarms. Its cover can be rotated 180° for easier reading;
System protection against overcurrents, input voltage fluctuations, dry running and losses in the system;
Easy setup and programming thanks to the highly-intuitive and user-friendly software;
Connectivity is provided by 4 configurable digital inputs, 2 configurable digital outputs, 2 analogue 4-20 m A inputs, 1 0-10v input, and 1 input for PTC.
The E-SPD+ also has 2 RS485 ports for communication and parallel functionality of up to 8 pumps, as well as for connecting to monitoring systems with Mod Bus connection.
Thanks to its versatility, the latest-generation inverter enables it to be applied to different types of system and used with different types of application, due to the fact that the following elements can be controlled and managed:
Constant pressure for pressure boosting systems
Differential pressure for circulation systems
Constant temperature for circulation systems
Differential temperature for circulation systems
Fixed speed
Variation of frequency via remote control 0-10 V
Water supply
Water distribution
Pressurisation
Irrigation systems
Water treatment
Filtering and reverse osmosis
Industrial cooling or heating systems
Fountains

Key Product Features

• Voltage: 400V
• High efficiency,
• Compact dimensions
• Practical and easy to use

Product Range Technical Data:

• Max. ambient temperature: 40°C
• Insulation class: F
• Protection degree: IP55
• Frequency: 50-60 Hz (+/-2%)
