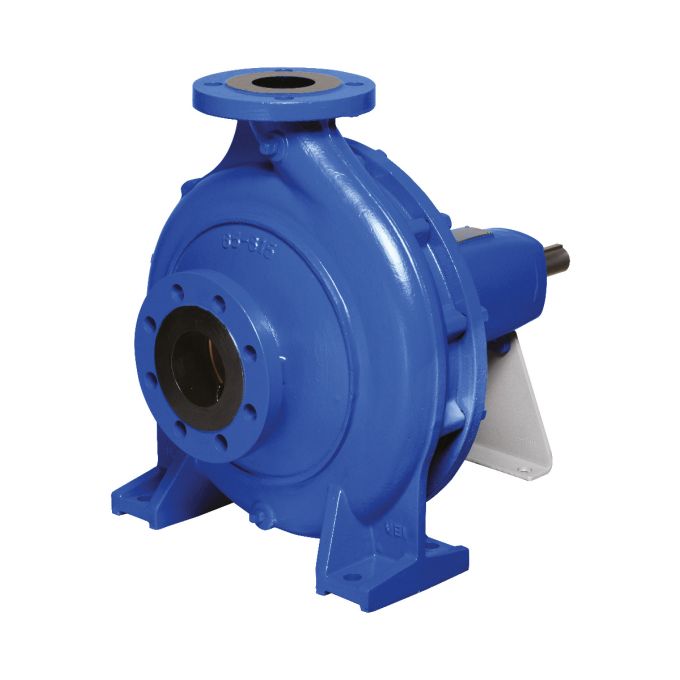

Ebara - GS 40-250 -211/B1 Bareshaft End Suction Pump - Motorless - Cast Iron Impeller

Name: Ebara - GS 40-250 -211/B1 Bareshaft End Suction Pump - Motorless - Cast Iron Impeller
Brand: Ebara
SKU: 2680000079A
Price: 2478.98 GBP
Availability: InStock

Part Number:

2680000079A

The Ebara - GS 40-250 -211/B1 Bareshaft End Suction Pump - Motorless - Cast Iron Impeller is a Standardised single-stage cast iron centrifugal pump and electric pump which combines the best technical and performance features in a single solution.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£3,682.38 RRP £2,478.98 £2,065.82

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Ebara - GS 40-250 -211/B1 Bareshaft End Suction Pump - Motorless - Cast Iron Impeller is a Standardised single-stage cast iron centrifugal pump and electric pump which combines the best technical and performance features in a single solution.
The wide range (from DN 32 up to DN 200-500), the variety of materials available, the easy servicing and the hydraulic efficiency, are further enhanced by the interaction with the electronic solutions also offered by EBARA.
The GS models are available in both Bar.e shaft and electric pump versions, with the following technical features:
Robust cast iron pump body
Impellers available in cast iron, ductile cast iron and bronze
The seal can be selected in two different versions: the mechanical one in Silicon Carbide/Carbon/EPDM and the packing one, in Silicon Carbide fibre. It has two replaceable bronze wear rings that ensure long-term reliable functionality and high hydraulic efficiency.
Finally the flanges, from DN 32 up to DN 200, all PN16 (with reference to EN 1092-1), make GS a product suitable for the heaviest and most demanding applications.
The motors are available with 2 or 4 poles, 50 Hz, with IE3 efficiency (from 0.75 k W), with powers ranging from 0.37 k W to 355 k W, which can be coupled with inverters.
For further technical information see the datasheet

Suitability:

Industrial processes
Cooling and air conditioning systems
Pressurisation
Firefighting

Key Product Features

Flow Rate (Actual): 1159 Ltr/min
High efficiency,
Sturdy construction,
Available with bronze or cast iron impeller

Product Range Technical Data:

Flow rate: up to 1300 m³/h
Total head: up to 150 m
Max. working pressure: 16 Bar.
Max. temperature of the liquid: -10°C to +120°C for standard and optional EPDM versions
-10°C to +110°C for optional FPM versions
0°C to +80°C for gland packing version
MEI: > 0.4
Poles: 2 and 4
Insulation class: F
Protection degree: IP55
Voltage: Three-phase 3~230/400V ±10% (up to and including 4k W)
Three-phase 3~400/690 V ±10% (from 5.5k W and above)

Materials Spec:

Pump body: Cast iron
Impeller: Cast Iron, Nodular cast iron, Bronze
Shaft: Stainless steel 431 (EN 1.4057)
Mechanical seal: Standard = Silicon Carbide/Carbon/EPDM
"2" = Silicon Carbide/Silicon Carbide/EPDM
"4" = Silicon Carbide/Silicon Carbide/FPM
Packing seal = silicon carbide fiber
Motor support: Cast iron

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.

More Information
Price	£2,065.82
Manufacturer	Ebara
Bars	16 bar
Warranty	1 year guarantee
Flow Rate	1159 Ltr/min
Water type	Clean or Discoloured
Pump Type Filter	Bareshaft Pump
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Next Day Delivery	No
Manufacturers Part Number	2680000079A
