Ebara - IDROGO 40/8 20MT - 230/50 WRAS Submersible Borehole Pump - Three Phase - 80 Ltr/min - 230V

Name: Ebara - IDROGO 40/8 20MT - 230/50 WRAS Submersible Borehole Pump - Three Phase - 80 Ltr/min - 230V
Brand: Ebara
SKU: 1582032309
Price: 593.46 GBP
Availability: InStock

Part Number:

1582032309

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£942.00 RRP £593.46 £494.55

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

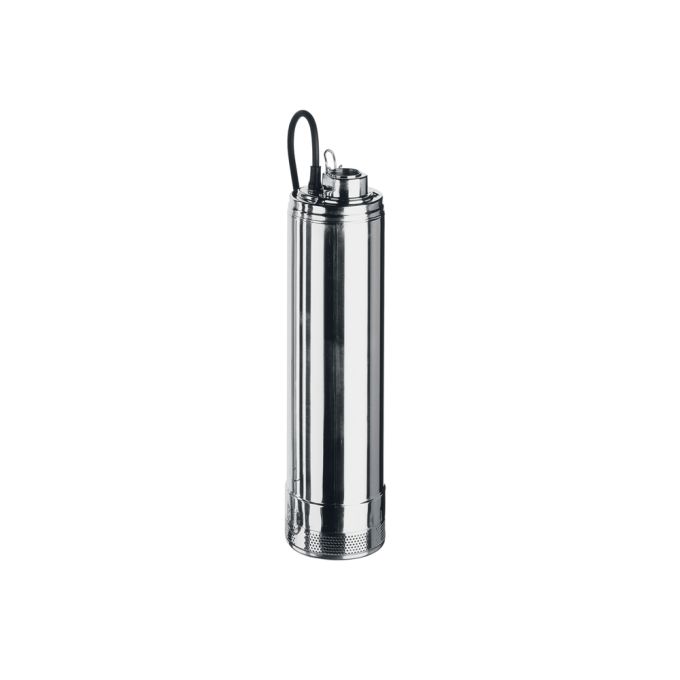

The Ebara - IDROGO 40/8 20 MT - 230/50 WRAS Submersible Borehole Pump - Three Phase - 80 Ltr/min. - 230V is a 5" submerged pump with stainless steel outer casing and glass fibre reinforced PPE impellers.
The IDROGO electric pump is reliable and corrosion-resistant, also due to the technical solutions adopted in its construction, such as the double mechanical seal in the oil chamber.
This pump is straightforward to install because it comes with 20 metres of cable for immediate setup and is suitable for vertical and horizontal operation.
The single-phase version with float switch (called 'A' version) on request.
The 5 or 10-metre key float with counterweight, supplied on request, is a useful and effective accessory and allows you to control the pump's start and stop based on the level of water present in the tank or well.
For further technical information see the datasheet

Suitability:

Handling of clear water from wells, cisterns and primary collection tanks
Pressurisation of domestic systems
Small-scale irrigation
Vehicle washing
Pressure boosting in general

Real-world product applications

Supplying water from boreholes or wells to storage tanks
Feeding water to a buildings supply system
Supporting irrigation and agricultural water delivery
Transferring groundwater to distribution systems
Providing water for general on-site supply duties

Key Product Features

Flow Rate (Actual): 80 Ltr/min
Type of Impeller: Vertical multistage
Voltage: 230V
Silent,
Practical and easy to use,
Suitable for horizontal operation

Product Range Technical Data:

Flow rate: from 1.2 to 7.2 m³/h
Total head: from 10 m to 76 m
Max. working pressure: 10 Bar.
Max. temperature of the liquid: +40°C
Poles: 2
Insulation class: F
Protection degree: IP68
Voltage: Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10%

Materials Spec:

Impeller: PPE+PS with glass fibres
Shaft: Stainless steel AISI 431 (EN 1.4057)
Mechanical seal: Carbon/Ceramic/NBR (motor side)
Silicon Carbide/Carbon/NBR (pump side)
Outer casing: Stainless steel AISI 304 (EN 1.4301)

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.

More Information
Price	£494.55
Manufacturer	Ebara
Warranty	1 year guarantee
Impeller Type	Vertical multistage
Impeller Stages	8
Electrical supply	230V
AC Power	Three Phase
Cable length	20m
Flow Rate	80 Ltr/min
Pump Operation	Manual (without float switch)
Water type	Clean or Discoloured
Pump Type Filter	Submersible
Switch	None
Duty Type	Commercial
Submersible vs Surface Mounted	Submersible
Approvals	WRAS Approved, ICIM, TUV, PZH
Next Day Delivery	No
Manufacturers Part Number	1582032309
