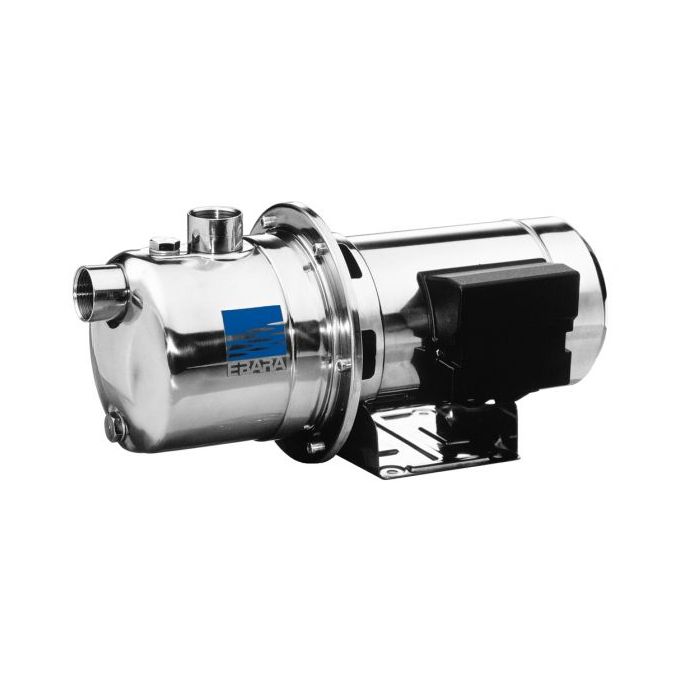

Ebara - JE/I 100 IE3 Self-Priming Pump - Three Phase - 70 Ltr/min - 400V

The electric pumps of the Ebara JES - JE series are electric pumps in AISI 304 Stainless Steel.

These are self-priming pumps equipped with Venturi group (ejector and diffuser), which are easy to use and light thanks to their small size.

Constructively they have the pump body, the support, the seal bearing disc in AISI 304 steel.

They are equipped with an AISI 303 shaft (for the part in contact with the liquid).

The impellers are different depending on the model: for the JES electric pumps the impeller is in
PPO + PS reinforced with glass fibres, while for the JE the impeller is in AISI 304.

The Ebara - JE/I 100 IE3 Self-Priming Pump - Three Phase - 70 Ltr/min. - 400V is a Self-priming centrifugal pump in AISI 304 steel with a special hydraulic system including a Venturi unit (ejector and diffuser) that can suck liquid up to 8 metres deep.
ideal for residential applications: gardening and irrigation.
Lightweight and easily transportable, small in size.
For further technical information see the datasheet

Suitability:

• Domestic pressurisation
• Pressure boosting in general
• Garden irrigation systems
• Vehicle washing
• Handling of clean water

Real-world product applications

• Drawing water from shallow sources such as tanks and sumps
• General water transfer where suction lift may be required
• Supporting site drainage and utility pumping duties
• Supplying water for irrigation and washdown systems
• Feeding water to distribution pipework

Key Product Features

• Flow Rate (Actual): 70 Ltr/min
• Type of Impeller: Single
• Voltage: 400V
• Practical and easy to use
• Lightweight and easily transportable

Product Range Technical Data:

• Flow rate: from 0.3 to 4.5 m³/h
• Total head: from 11.5 to 49 m
• Max. working pressure: 6 Bar.
• Max. temperature of the liquid: 45°C
• Max. suction depth: 8 m
• Poles: 2
• Insulation class: F
• Protection degree: IP44 (IP55 on request)
• Voltage: Single-phase 1~230V ±10%
• Three-phase 3~230/400V ±10%

Materials Spec:

• Pump body: Stainless Steel AISI 304 (EN 1.4301)
• Impeller: Stainless Steel AISI 304 (EN 1.4301) for JE
• PPO reinforced with glass fibres for JES
• Shaft: Stainless Steel AISI 303 (EN 1.4305) (part in contact with liquid)
• Mechanical seal: Ceramic/Carbon/NBR (standard)
• Motor support: Stainless Steel AISI 304 (EN 1.4301)

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.
