Ebara - MATRIX/I 3-5T/0,75 IE3 Horizontal Multistage Pump - Three Phase - 80 Ltr/min - 400V

Name: Ebara - MATRIX/I 3-5T/0,75 IE3 Horizontal Multistage Pump - Three Phase - 80 Ltr/min - 400V
Brand: Ebara
SKU: 2470350004I
Price: 699.3 GBP
Availability: InStock

Part Number:

2470350004I

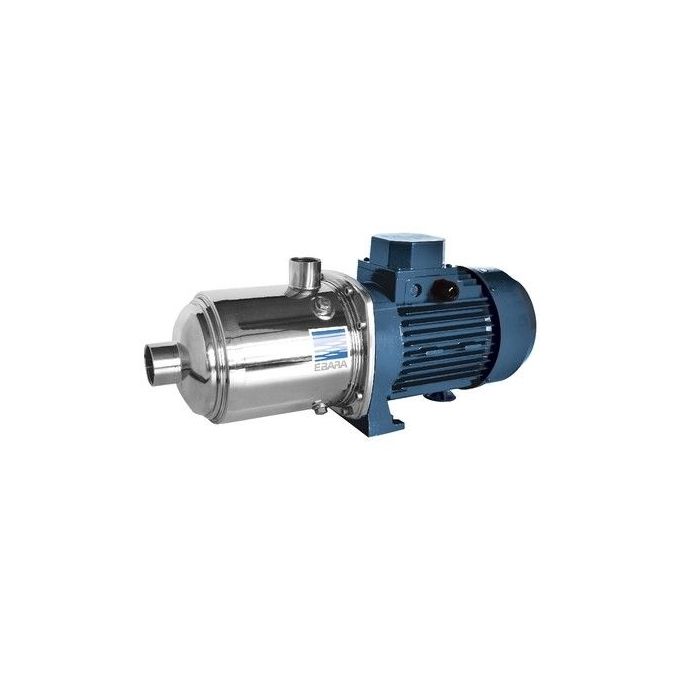

The Ebara - MATRIX/I 3-5 T/0,75 IE3 Horizontal Multistage Pump - Three Phase - 80 Ltr/min. - 400V is a Multistage horizontal AISI 304 stainless steel centrifugal pump, ideal for drinking water.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,110.00 RRP £699.30 £582.75

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Ebara - MATRIX/I 3-5 T/0,75 IE3 Horizontal Multistage Pump - Three Phase - 80 Ltr/min. - 400V is a Multistage horizontal AISI 304 stainless steel centrifugal pump, ideal for drinking water.
Its sturdy construction, and compact design allow its setup in various domestic and industrial applications.
For further technical information see the datasheet

Suitability:

Pressure boosters
Water distribution and treatment
Heating and air conditioning
Cooling and chillers
Irrigation and rainwater harvesting
Industrial washing
Industrial installations

Real-world product applications

Pressure boosting for water supply systems
Feeding distribution networks requiring higher pressure
Supporting irrigation and washdown water delivery
General clean-water transfer for utility systems
Supplying water to buildings and equipment

Key Product Features

Flow Rate (Actual): 80 Ltr/min
Type of Impeller: Horizontal multistage
Voltage: 400V
Compact dimensions,
Sturdy construction,
Silent

Product Range Technical Data:

Flow rate: up to 27 m³/h
Total head: up to 97 m
Max. working pressure: 10 Bar.
Max. temperature of the liquid: -15°C to · +85°C for standard, H, HS versions
-15°C to · +110°C for TE version for high temperatures
Poles: 2
Insulation class: F
Protection degree: IP55
Voltage: Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10%

Materials Spec:

Pump body: Stainless steel AISI 304 (EN 1.4301)
Impeller: Stainless steel AISI 304 (EN 1.4301)
Shaft: Stainless steel AISI 304 (EN 1.4301)
Mechanical seal: Ceramic/Carbon/EPDM (standard)
H = Graphite/Ceramic/FPM
HS = Silicon Carbide/Silicon Carbide/FPM
Motor support: EN AB-AISi11 Cu2(Fe) (precision-cast aluminium)

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.

More Information
Price	£582.75
Manufacturer	Ebara
Warranty	1 year guarantee
Impeller Type	Horizontal multistage
Impeller Stages	5
Electrical supply	400V
AC Power	Three Phase
Flow Rate	80 Ltr/min
Water type	Clean or Discoloured
Pump Type Filter	Multistage
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Next Day Delivery	No
Manufacturers Part Number	2470350004I
