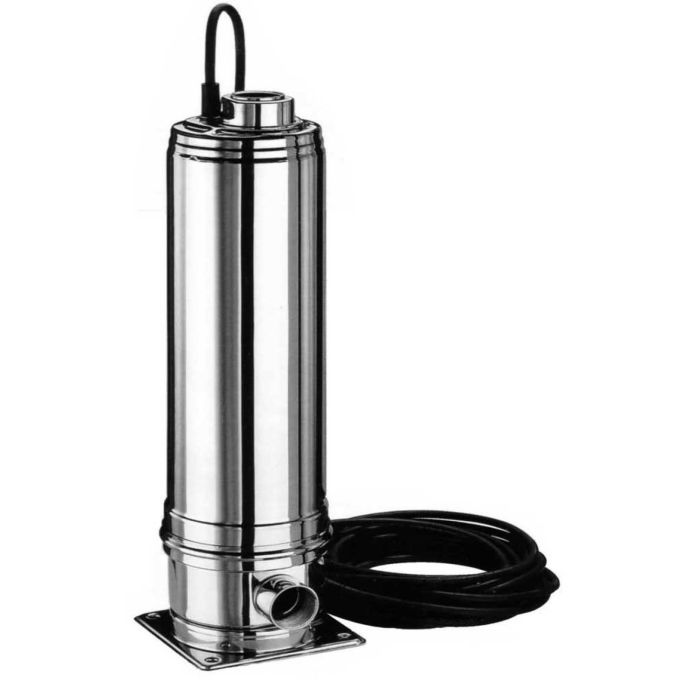

Ebara - Multigo 40/15 Submersible Pump - 3 Phase - 400V

Ebara MULTIGO submersible, vertical multistage pumps are renowned for being a low noise, reliable pump for domestic and commercial uses.

This submersible water pump by Ebara is made from corrosion-resistant Stainless Steel.

The pump motor is cooled by pumped liquid, simultaneously reducing the noise levels as the liquid passes around the motor within a water jacket.

The double mechanical seal with interposed chamber containing lubrication fluid ensures long life and reliability.

Some suitable applications include: boosting of domestic and community hydraulic plants, moving liquids in places subject to flooding, water features and irrigation systems.

The Ebara - Multigo 40/15 Submersible Pump - 3 Phase - 400V is a Vertical multistage centrifugal pump in AISI 304 Stainless Steel, equipped with a motor cooled by the pumped liquid that makes it unique in terms of versatility of use, both in surface and submerged configuration, and of silence, reducing the vibrations caused by the hydraulic part.
The MULTIGO vertical multistage centrifugal electric pump has a double mechanical seal in the oil chamber to ensure continuous lubrication and maximum reliability.
The MULTIGO is offered also as in-line version.
For further technical information see the datasheet

Suitability:

• Pressure boosting
• Pressure boosting systems
• Irrigation
• Washing systems
• Clean liquid harvesting

Real-world product applications

• Removing water from pits, sumps, and collection points
• Supporting drainage and water transfer duties
• Dewatering flooded areas and low-lying spaces
• Transferring water from tanks and containers
• Assisting with general submersible pumping tasks

Key Product Features

• Flow Rate (Actual): 80 Ltr/min
• Max Head: 76m
• Voltage: 400V
• Easy maintenance,
• Practical and easy to use
• Silent

Product Range Technical Data:

• Flow rate: 1.2 to 7.2 m³/h
• Total head: from 75.7 to 13.4 m
• Max. working pressure: 10 Bar.
• Max. temperature of the liquid: +40°C
• Max. suction depth: 6 m with 5 m cable
• MEI:> 0.4
• Poles: 2
• Insulation class: F
• Protection degree: IP68
• Voltage: Single-phase 1~230V ±10%
• Three-phase 3~230/400V ±10%

Materials Spec:

• Pump body: Stainless Steel AISI 304 (EN 1.4301)
• Impeller: PPE+PS with glass fibres
• Shaft: Stainless Steel AISI 431 (EN 1.4057)
• Mechanical seal: Ceramic/Carbon/NBR
• Motor support: AISI 304

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.
