Ebara - OPTIMA MA UK Plug Submersible Sump Water Pump - Single Phase - With Floatswitch - 230V

Name: Ebara - OPTIMA MA UK Plug Submersible Sump Water Pump - Single Phase - With Floatswitch - 230V
Brand: Ebara
SKU: 1751101700
Price: 306.18 GBP
Availability: InStock

Part Number:

1751101700

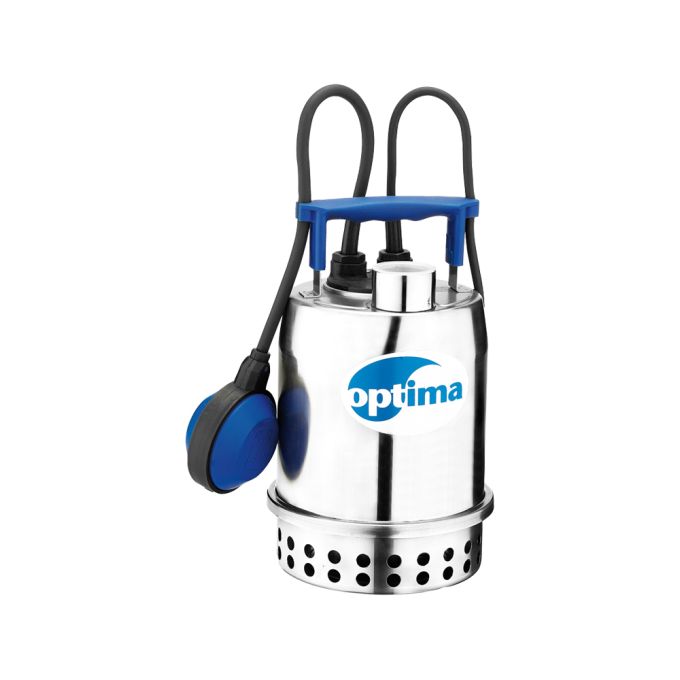

The Ebara - OPTIMA MA UK Plug Submersible Sump Water Pump - Single Phase - With Floatswitch - 230V is a AISI 304 stainless steel submersible pump with mechanical seal in oil bath and oversized oil chamber.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£486.00 RRP £306.18 £255.15

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Ebara - OPTIMA MA UK Plug Submersible Sump Water Pump - Single Phase - With Floatswitch - 230V is a AISI 304 stainless steel submersible pump with mechanical seal in oil bath and oversized oil chamber. These features make the pump dependable, durable and corrosion-resistant.
The OPTIMA electric pump has a great versatility of installation (fixed or mobile) due to the possibility of choosing between the vertical magnetic float switch (of reduced size) or the float switch.
These solutions also allow you to choose the best pump insertion option according to the space offered.
For further technical information see the datasheet

Suitability:

Emptying of wells, cellars, garages or basements, tanks or reservoirs
Use for irrigating gardens and vegetable plots and for supplying water to classic garden fountains

Real-world product applications

Dewatering flooded areas such as basements and pits
Draining water from excavations, trenches, and site works
Removing water from sumps, chambers, and collection points
Supporting general drainage and clean-up tasks
Transferring water from tanks or containers

Key Product Features

Flow Rate (Actual): 150 Ltr/min
Type of Impeller: Single
Voltage: 230V
Sturdy design, corrosion resistant
Possibility to use in fixed and mobile installations
Practical and easy to use

Product Range Technical Data:

Flow rate: from 1.2 to 9 m³/h
Total head: from 1.5 to 7.6 m
Max. temperature of the liquid: +50°C
Poles: 2
Max. solids passage: 10 mm
Insulation class: F
Protection degree: IP68
Voltage: Single phase 1 ~ 230V ± 10%
Max. immersion: 5 m with 10 m cable
2 m with 5 m cable

Materials Spec:

Pump body: Stainless steel AISI 304 (EN 1.4301)
Impeller: PPE + PS reinforced with glass fibres
Shaft: Stainless steel AISI 303 (EN 1.4305) (part in contact with liquid)
Mechanical seal: Ceramic/Carbon/NBR (mechanical seal)
QQV Silicon Carbide/FPM (special mechanical seal)
NBR (lip seal)

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.

More Information
Price	£255.15
Manufacturer	Ebara
Warranty	1 year guarantee
Impeller Type	Single
Impeller Stages	1
Electrical supply	230V
AC Power	Single Phase
Flow Rate	150 Ltr/min
Pump Operation	Automatic (with float switch)
Water type	Clean or Discoloured
Pump Type Filter	Sump Pump
Switch	Float Switch
Duty Type	Domestic
Submersible vs Surface Mounted	Submersible
Inlet Connection	Strainer
Next Day Delivery	Yes
Manufacturers Part Number	1751101700
