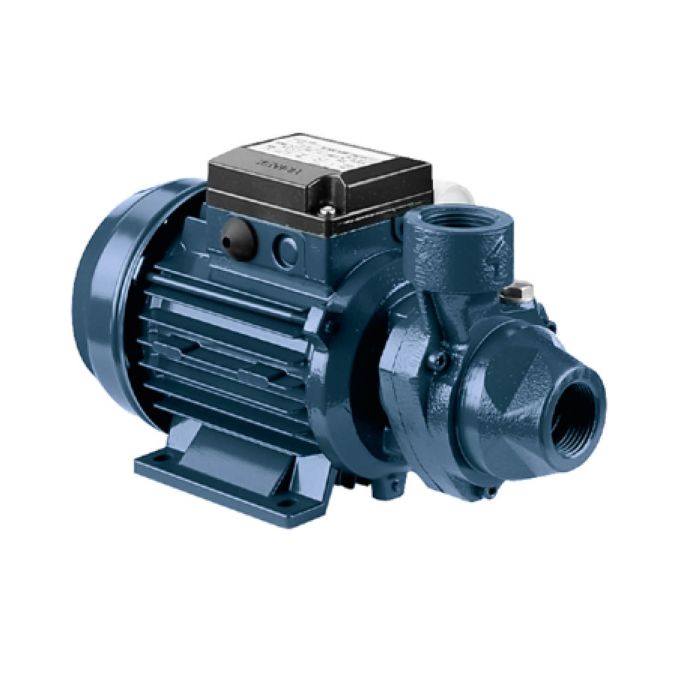

Ebara - PRA 1.00M Peripheral Pump - 230V

Name: Ebara - PRA 1.00M Peripheral Pump - 230V
Brand: Ebara
SKU: EB-115 010 0000
Price: 364.39 GBP
Availability: InStock

Part Number:

EB-115 010 0000

The Ebara - PRA 1.00 M Peripheral Pump - 230V is a PRA peripheral pump with cast iron body and support, also offered in the nickel-plated version (PRN 0.50 single-phase).

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£578.40 RRP £364.39 £303.66

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Ebara - PRA 1.00 M Peripheral Pump - 230V is a PRA peripheral pump with cast iron body and support, also offered in the nickel-plated version (PRN 0.50 single-phase).
PRA-PRN electric pumps are practical, streamlined and easily transportable.
For further technical information see the datasheet

Suitability:

Domestic use
Boiler power supply
Autoclave units

Key Product Features

Flow Rate (Actual): 50 Ltr/min
Max Head: 71m
Voltage: 230V
Nickel-plated version available
Lightweight and easily transportable
Practical and easy to use
Silent

Product Range Technical Data:

Flow rate: from 0.3 to 4.2 m³/h
Total head: from 12 to 88 m
Max. working pressure: 6 bar. PRA/PRN 0.50
7.5 bar. PRA 0.80
12 bar. for the rest of the range
Max. temperature of the liquid: +80°C
Poles: 2
Insulation class: F
Protection degree: IP44
Voltage: Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10%

Materials Spec:

Pump body: Cast iron
Nickel-plated cast iron for PRN
Impeller: Brass
Shaft: AVZ for PRA 0.50
AISI 303 (EN 1.4305) for the rest of the range
Mechanical seal: Carbon/Ceramic/NBR (standard)
Motor support: Cast iron

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.

More Information
Price	£303.66
Manufacturer	Ebara
Warranty	1 year guarantee
Electrical supply	230V
AC Power	Single Phase
Flow Rate	50 Ltr/min
Max Head	71m
Switch	None
Duty Type	Domestic
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	Peripheral Pump
Next Day Delivery	No
Manufacturers Part Number	1150100000
