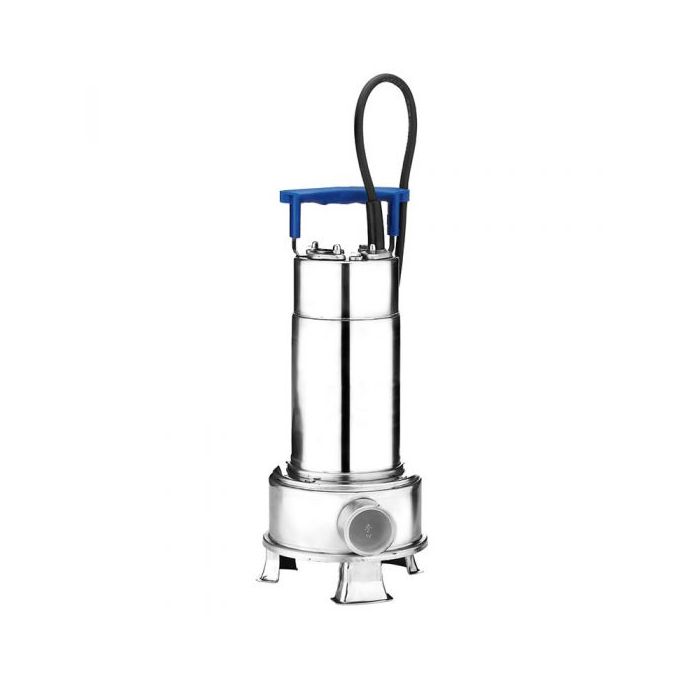

Ebara - RIGHT/A 100 10MT Submersible Sewage Pump - Three Phase - 300 Ltr/min - 400V - Stainless Steel

Name: Ebara - RIGHT/A 100 10MT Submersible Sewage Pump - Three Phase - 300 Ltr/min - 400V - Stainless Steel
Brand: Ebara
SKU: 1771051404A
Price: 592.7 GBP
Availability: InStock

Part Number:

1771051404A

Ebara RIGHT is a stainless-steel submersible pump with an open vortex impeller, designed for drainage and wastewater lifting applications (duty dependent).

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£940.80 RRP £592.70 £493.92

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Ebara RIGHT is a stainless-steel submersible pump with an open vortex impeller, designed for drainage and wastewater lifting applications (duty dependent).

It can be used in fixed or mobile installations, with the vortex hydraulic format intended to support solids passage and reduce clogging risk (application dependent).

Typical applications

Drainage and dirty-water lifting (duty dependent)
Grey water and wastewater pumping (application dependent)
Fixed or portable site drainage

The Ebara - RIGHT/A 100 10 MT Submersible Sewage Pump - Three Phase - 300 Ltr/min. - 400V is a Submersible pump entirely in AISI 304 Stainless Steel and open vortex impeller, which can be utilised in fixed and mobile installations.
The RIGHT electric pump is also available with a float switch that allows for wide use.
For further technical information see the datasheet

Suitability:

Handling of soiled liquids containing solid and/or filamentary substances in suspension
Emptying of seepage liquid
Handling of dirty wastewater (sanitary)
Emptying of cesspits and discharge to sewers

Real-world product applications

Handling liquids containing suspended solids
Supporting drainage in foul-water installations
Assisting with wastewater movement on sites and properties

Key Product Features

Flow Rate (Actual): 300 Ltr/min
Type of Impeller: Single
Voltage: 400V
Possibility to use in fixed and mobile installations

Product Range Technical Data:

Flow rate: up to 18 m³/h
Total head: up to 9.5 m
Max. temperature of the liquid: +50°C
Poles: 2
Max. solids passage: 35 mm
Insulation class: F
Protection degree: IPX8
Voltage: Single-phase 1~230V ± 10%
Three-phase 3~400V ±10%
Max. immersion: 7 m with 10 m cable
2 m with 5 m cable

Materials Spec:

Pump body: Stainless Steel AISI 304 (EN 1.4301)
Impeller: Stainless Steel AISI 304 (EN 1.4301)
Shaft: Stainless Steel AISI 303 (EN 1.4305) (part in contact with liquid)
Mechanical seal: upper part in Carbon/Ceramic/NBR (motor side)
lower part in Silicon Carbide/NBR (pump side)

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.

More Information
Price	£493.92
Manufacturer	Ebara
Warranty	1 year guarantee
Impeller Type	Single
Impeller Stages	1
Electrical supply	400V
AC Power	Three Phase
Cable length	10m
Flow Rate	300 Ltr/min
Pump Operation	Manual (without float switch)
Water type	Sewage
Switch	None
Duty Type	Commercial
Submersible vs Surface Mounted	Submersible
Pump Type Filter	Sewage Pump
Next Day Delivery	No
Manufacturers Part Number	1771051404A
