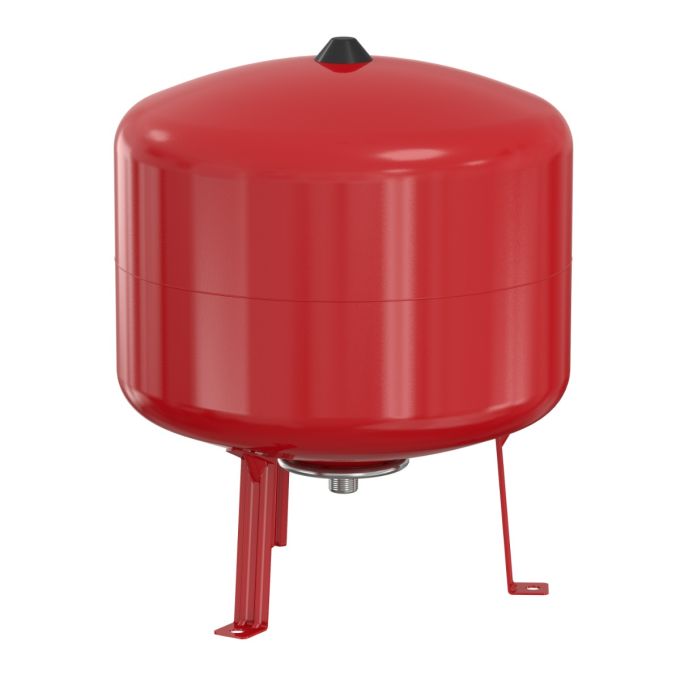

Flamco - 80 Ltr - Baseflex 80 Heating Expansion Vessel - 1.5 Bar Pre-Charge

Name: Flamco - 80 Ltr - Baseflex 80 Heating Expansion Vessel - 1.5 Bar Pre-Charge
Brand: Flamco
SKU: 25307
Price: 127.03 GBP
Availability: InStock

Part Number:

25307

Developed for sealed LPHW/CHW systems, this Baseflex 80 Heating Expansion Vessel delivers reliable performance with a tidy, installer-friendly form.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£201.64 RRP £127.03 £105.86

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Flamco - 80 Ltr - Baseflex 80 Heating Expansion Vessel - 1.5 Bar Pre-Charge - 25307

For sealed heating (acc. to EN12828) and cooling installations.
When the temperature in the system installation rises, the system water will expand. The ‘expansion water’ is stored temporarily in the hydraulic expansion vessel to keep the pressure in the system installation at the correct level. Each vessel is factory tested.

Additional Information:

The thread of the system connection is uncoated, ensuring problem free connection.
The fixed bag-type diagrapgm prevents the water to come in contact with the bare steel of the vessel.
Nitrogen gas filling for longer maintenance of pre-pressure.

Additional Technical Information:

Maximum working pressure: 6.0 bar.
Red (RAL 3002) epoxy powder coating (also available as an option in white (RAL9010)).
Vessels in accordance with EN13831.
Designed and rated for systems with a maximum system temperature of 120 °C.
Min. / max. temperature diaphragm: -10 / 70 °C.
Diaphragm: EPDM.
All welded construction.
Zinc plated flange.
Designed and rated for addition of glycol-based anti-freeze up to 50%.
In accordance with Pressure Equipment Directive 2014/68/EU.
Baseflex 35 - 80: Standard furnished with legs.

More Information
Price	£105.86
Manufacturer	Flamco
Warranty	1 year guarantee
Water type	Clean or Discoloured
Duty Type	Domestic
Pump Type Filter	Pressure Vessel
Next Day Delivery	Yes
Manufacturers Part Number	25307
