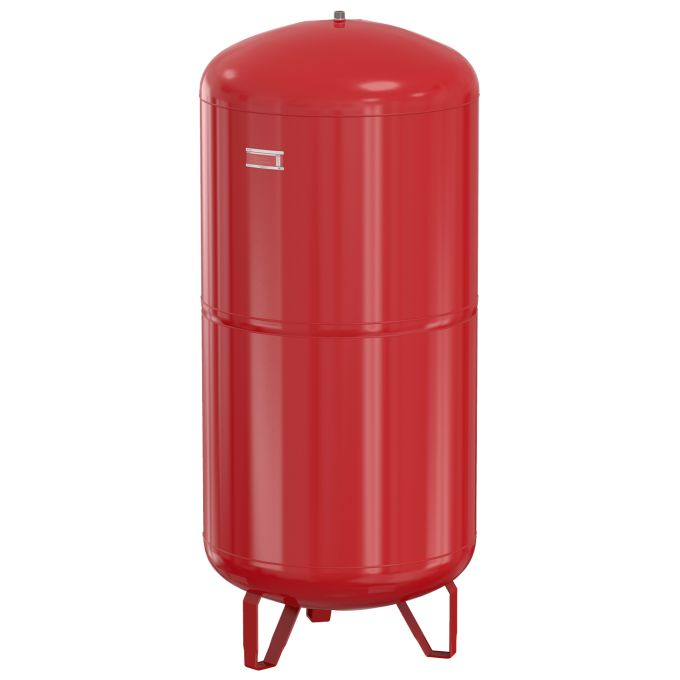

Flamco - 1000 Ltr - Flexcon Expansion Vessel - 6 bar

Flamco Flexcon Expansion Vessel - 1000Ltr - Engineered for EN 12828 heating and chilled-water systems, this Expansion Vessel stabilises sealed system pressure by absorbing thermal expansion in LPHW/CHW applications.

Maximum working pressure: 6.0 bar.

Vessels in accordance with EN13831.

Suitable for systems with a maximum system temperature of 120 °C.

Minimum / maximum temperature diaphragm: -10 / 70 °C.

Suitable for addition of glycol-based anti-freeze up to 50%.

A flexible rolling diaphragm with a ribbed profile prevents sticking and encourages inflow at the slightest pressure rise, while a nitrogen pre-charge helps maintain set pressure longer. The uncoated connection thread supports quick, watertight installation.

• Rolling-diaphragm design for smooth expansion control
• Nitrogen pre-charge for extended pre-pressure retention
• Top-quality steel with epoxy-powder finish
• Factory tested for reliability

Built for long service life in domestic, commercial and industrial plant rooms, with continuous medium temperatures from −10 to 70 C.

Key Product Features

• Applications: sealed heating (EN 12828) and chilled-water systems
• Diaphragm: flexible, rolling action; ribbed profile prevents sticking
• Pre-charge medium: nitrogen for better pressure stability
• Connections: uncoated water connection thread for easy, watertight fit
• Material & finish: high-grade steel with gleaming epoxy-powder coating
• Volume:1000 Ltrs
• Pre-pressure:1.5 Bar
• Max operating pressure:6 Bar
• Medium temperature (continuous):−10 to 70 C
• Operating pressure: 6 Bar.

Flamco (est. 1956) is a Dutch manufacturer of HVAC and plumbing system components, including expansion vessels, air separators and pressurisation accessories. Their ranges are used in heating and chilled-water circuits and potable water systems across domestic and commercial installations.
