Flamco - Flexible Connection 5 - 500mm - 6 bar

Name: Flamco - Flexible Connection 5 - 500mm - 6 bar
Brand: Flamco
SKU: 17755
Price: 535.14 GBP
Availability: InStock

Part Number:

17755

Purpose-made for Flamcomat vessels, this two-piece connection hose kit links the main or auxiliary vessel to the pump-unit for fast, leak-tight installation.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£535.14 £445.95

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

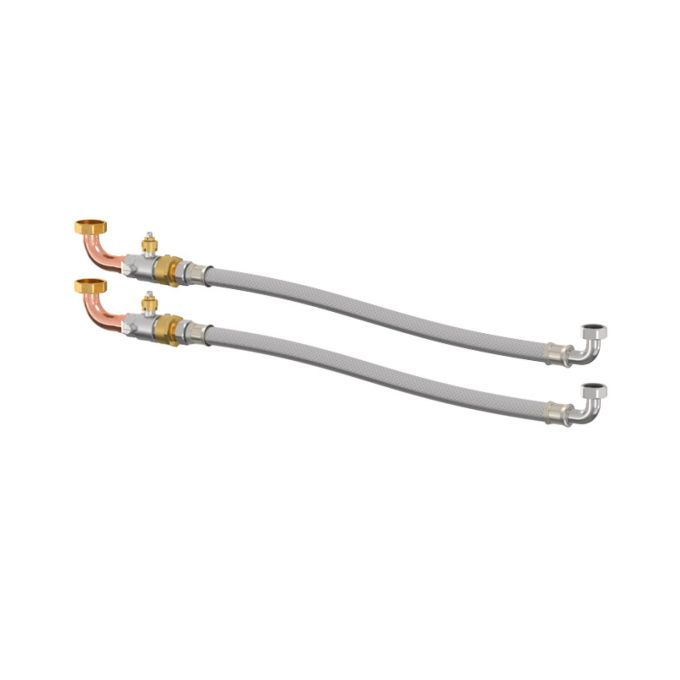

Purpose-made for Flamcomat vessels, this two-piece connection hose kit links the main or auxiliary vessel to the pump-unit for fast, leak-tight installation.

Each assembly provides a G 1½" female vessel end and G 1½" male pump end over a 500 mm working length, using braided hose with a ball valve and drainage valve for safe isolation and service.

Set of 2 pre-made flexible connections
500 mm length (approx. 0.5 m)
Face-sealed female vessel side for reliable sealing
Integrated ball & drain valves for easy maintenance

Rated to 6 Bar and 110 °C, the hoses are suited to demanding sealed system duties in commercial plantrooms.

Key Product Features

Quantity: set of 2 flexible connectors
Connections: Vessel G 1½" F; Pump-unit G 1½" M
Length:500 mm (working length approx. 0.5 m)
Pressure rating: max 6 Bar
Medium temperature (continuous): max 110 °C
Construction: braided hose; face-sealed female end
Supplied with packings: no (install with suitable seals as required)
Approx. weight (set):5.0 kg
Use case: connects Flamcomat main or auxiliary vessel to pump-unit
Operating pressure: 6 Bar.

Flamco (est. 1956) is a Dutch manufacturer of HVAC and plumbing system components, including expansion vessels, air separators and pressurisation accessories. Their ranges are used in heating and chilled-water circuits and potable water systems across domestic and commercial installations.

More Information
Price	£445.95
Manufacturer	Flamco
Warranty	1 year guarantee
Bars	6 bar
Duty Type	Commercial
Pump Type Filter	Spares
Next Day Delivery	No
Manufacturers Part Number	17755
