Flamco - Prescofiller - 27685

Name: Flamco - Prescofiller - 27685
Brand: Flamco
SKU: 27685
Price: 57.2 GBP
Availability: InStock

Part Number:

27685

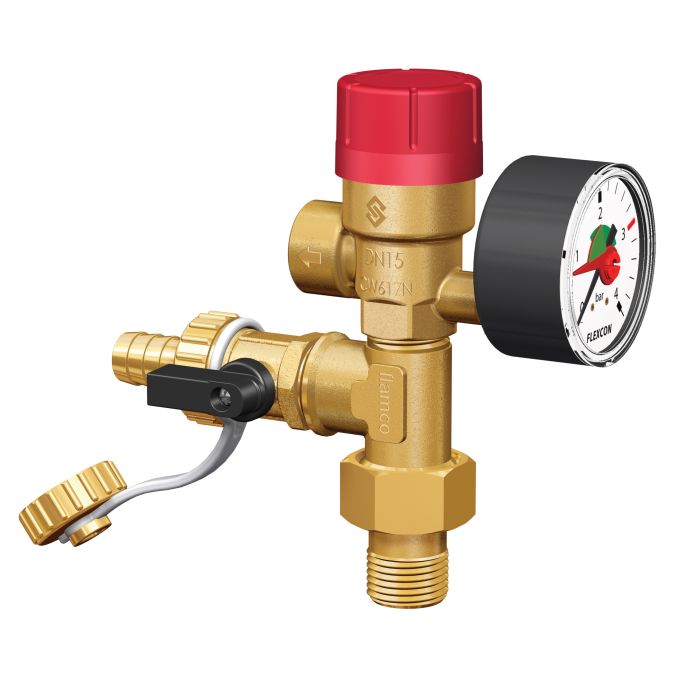

A compact filling assembly for domestic sealed heating systems, Prescofiller the filling device combines a safety valve and a 04 Bar pressure gauge to maintain minimum system pressure with confidence.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£76.26 RRP £57.20 £47.67

In stock

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

A compact filling assembly for domestic sealed heating systems, Prescofiller the filling device combines a safety valve and a 04 Bar pressure gauge to maintain minimum system pressure with confidence.

Supplied with the Prescomano and ball valve separate from the fill/drain tap, it can be installed in any orientation. Connections are Inlet: 1/2" M, Outlet: 1/2" F, with a factory set pressure of 3.0 Bar and a durable brass body for long service life.

Safety valve + 04 Bar gauge for quick visual checks
3.0 Bar set pressure for dependable protection
1/2" M inlet and 1/2" F outlet for straightforward hookup
Brass construction for robustness and corrosion resistance

Rated for systems up to 125 kW, with broad operating limits for demanding plant rooms.

Key Product Features

Application: domestic sealed heating systems
Gauge range: 04 Bar
Set pressure: 3.0 Bar
Connections: Inlet 1/2" M; Outlet 1/2" F
Heating capacity: up to 125 kW
Operating temperature: −10 C to 120 C (peak 140 C)
Material: Brass
Mounting: Prescomano and ball valve supplied separately for mounting in any position

Flamco (est. 1956) is a Dutch manufacturer of HVAC and plumbing system components, including expansion vessels, air separators and pressurisation accessories. Their ranges are used in heating and chilled-water circuits and potable water systems across domestic and commercial installations.

More Information
Price	£47.67
Manufacturer	Flamco
Warranty	1 year guarantee
Pump Type Filter	Spares
Next Day Delivery	Yes
Manufacturers Part Number	27685
