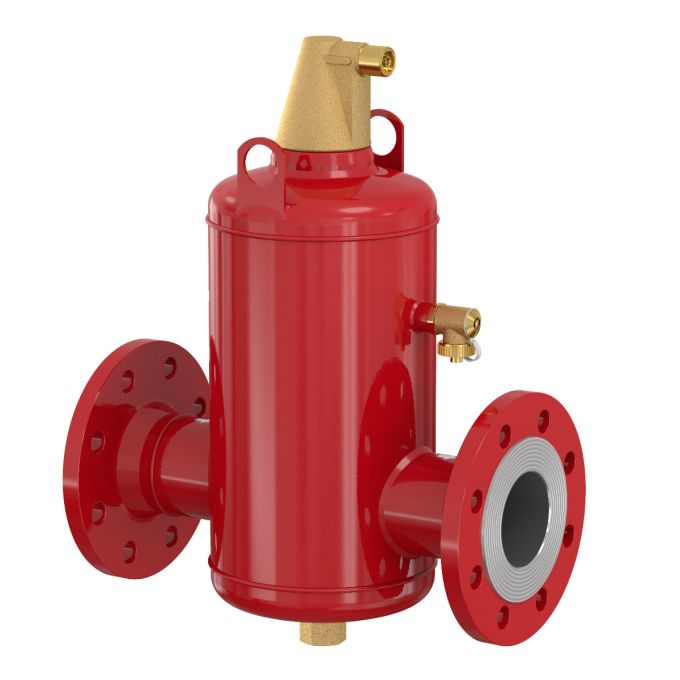

Flamcovent - Air Separator 65F Smart - Air - DN 65

Name: Flamcovent - Air Separator 65F Smart - Air - DN 65
Brand: Flamco
SKU: 31003
Price: 1552.5 GBP
Availability: InStock

Part Number:

31003

The Flamcovent - Air Separator 65F Smart - Air - DN 65 is a high-efficiency air separator designed for sealed heating and chilled water systems.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£2,504.02 RRP £1,552.50 £1,293.75

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Flamcovent - Air Separator 65F Smart - Air - DN 65 is a high-efficiency air separator designed for sealed heating and chilled water systems.

It helps remove dissolved and free air from the system, supporting quieter operation, improved heat transfer, lower component wear, and more efficient overall performance.

Designed to purge micro-bubbles while conserving energy, the Flamcovent - Smart Air Separator delivers fast, effective deaeration for sealed LPHW and CHW systems, improving comfort and system efficiency.

Its steel core geometry removes even the tiniest bubbles with up to 60% better performance than conventional separators, while the extremely low flow resistance keeps pumping energy to a minimum. Flanged connections comply with EN 1092-1 PN16, and the unit suits standard flow velocities up to 3 m/s.

Stabilises plant — less air means quieter operation and better heat transfer
Protects equipment — reduced wear on pumps, control gear and accessories
Ideal for retrofits — benefits older and open-to-closed conversions
Low maintenance with constant performance over its service life

Key Product Features

Application: sealed heating and cooling installations
Connection: flanged to EN 1092-1 PN16
Performance: up to 60% better air removal vs conventional designs
Hydraulics: extremely low flow resistance; standard flow speed up to 3 m/s
Construction: steel body; constant performance; low maintenance
Temperature (continuous):0–120 °C
Max operating pressure:10 Bar

More Information
Price	£1,293.75
Manufacturer	Flamco
Warranty	1 year guarantee
Pump Type Filter	Separator
Duty Type	Commercial
Separator Type	Air
Suitable For Heating	Yes
Suitable For Cooling	Yes
Suitable For Open System	No
Suitable For Closed System	Yes
With Dismountable Filter	No
Filter Volume	8
With Automatic De-Aerator	Yes
With Couplers	No
Connection Type	Flange
Connection Size	DN 65
Next Day Delivery	No
Manufacturers Part Number	31003
