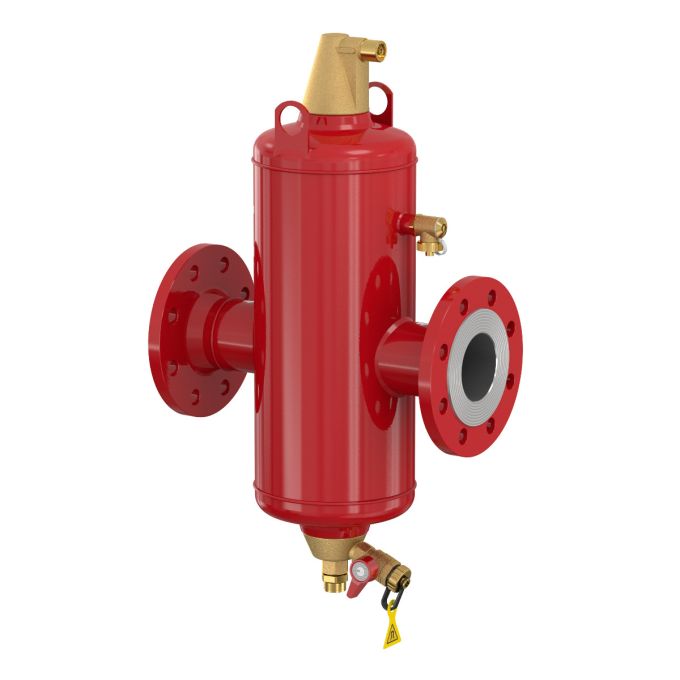

Flamcovent - Clean Separator 50F Smart - Air/Dirt - DN 50

Name: Flamcovent - Clean Separator 50F Smart - Air/Dirt - DN 50
Brand: Flamco
SKU: 31041
Price: 1436.21 GBP
Availability: InStock

Part Number:

31041

The Flamcovent - Clean Separator 50F Smart - Air/Dirt - DN 50 is a combined air and dirt separator designed for sealed heating and chilled water systems.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£2,316.47 RRP £1,436.21 £1,196.84

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Flamcovent - Clean Separator 50F Smart - Air/Dirt - DN 50 is a combined air and dirt separator designed for sealed heating and chilled water systems.

It helps remove micro-bubbles and system debris in one unit, supporting cleaner circulation, better heat transfer, reduced wear on pumps and valves, and more dependable long-term performance.

Built for sealed heating and cooling circuits, the Flamcovent - Clean Smart combines high-efficiency air and dirt separation to protect boilers, pumps and control components while improving system performance.

The steel Smart core removes micro-bubbles and fine particulates with up to 60% better performance than conventional units, and its extremely low flow resistance helps cut pumping energy. Flanged connection to EN 1092-1 PN16; standard flow speed up to 3 m/s.

Dual action: simultaneous air & dirt removal for stable operation
Plant protection: reduces fouling and wear on boilers, pumps and valves
Energy efficient: negligible pressure drop
Magnetic assist:25 neodymium magnets integrated in the dirt scraper

Key Product Features

Application: sealed heating and cooling systems; ideal for retrofits and open-to-closed conversions
Connection: flanged to EN 1092-1 PN16
Performance: up to 60% better air & dirt removal vs. conventional separators
Hydraulics: standard flow speed up to 3 m/s; extremely low flow resistance
Magnetics:25 neodymium supermagnets in scraper
Service: constant performance over lifespan; low maintenance

More Information
Price	£1,196.84
Manufacturer	Flamco
Warranty	1 year guarantee
Pump Type Filter	Separator
Duty Type	Commercial
Separator Type	Air, Dirt
Suitable For Heating	Yes
Suitable For Cooling	Yes
Suitable For Open System	No
Suitable For Closed System	Yes
With Dismountable Filter	No
Filter Volume	8
With Automatic De-Aerator	Yes
With Couplers	No
Connection Type	Flange
Connection Size	DN 50
Next Day Delivery	No
Manufacturers Part Number	31041
