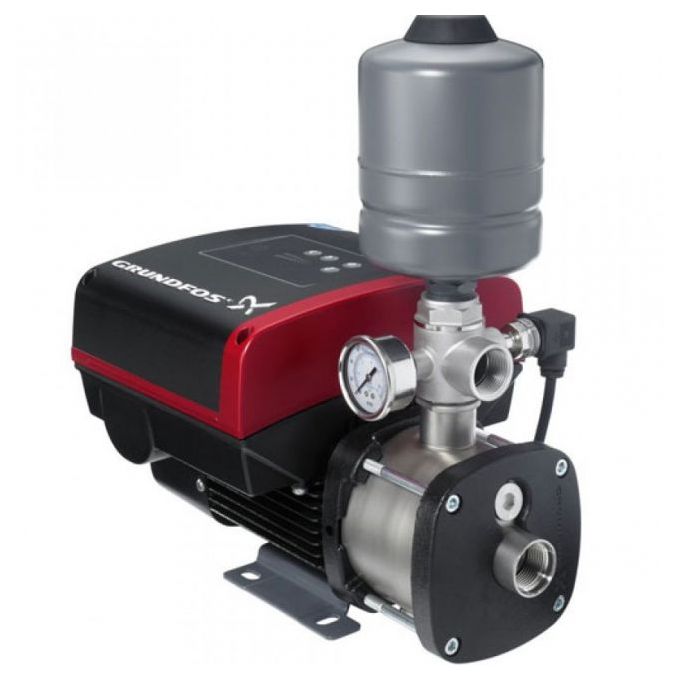

Grundfos - CMBE 10-54 I U C D D C Variable Speed Compact Home Booster Package Set - 5.4 Bar. - 240V - Stainless Steel

The Grundfos CMBE booster is a space-efficient booster system for water supply in domestic applications. The integrated speed controller enables the CMBE booster to keep constant pressure in the pipe system. A pressure sensor monitoring changes in the water consumption signals the speed controller to change motor speed to adapt performance to the new state. The CMBE booster is very straightforward to install. When the system has been connected to the pipes, it is only a matter of inserting the power plug into a power outlet, and the system is operational. The CMBE booster consists of the following:

The Grundfos CMBE booster requires no external motor protection. The MGE motor incorporates thermal protection against slow overloading and blocking (IEC 34.11: TP 211).

The Grundfos CMBE booster is mainly used for domestic and light commercial water supply or booster systems.

Suitable for: Domestic rainwater harvesting

Real-world product applications

• Boosting water pressure to multiple outlets in a building
• Maintaining stable pressure where demand varies
• Supplying water from storage tanks to distribution pipework
• Supporting general water supply and transfer systems
• Assisting with pressure control in utility installations

Key Product Features

• Length of cable: 1.5 m
• Net weight: 21.8 kg
• Mains frequency: 50 Hz
• Approvals: CE,EAC,CN ROHS EXE,MORO,UKCA
• Rated Head: 25.1 m
• Rated Flow: 12.3 m³/h
• Product Voltage: 1 x 200-240 V
• Temperature Liquid Range: 0 .. 60 °C
• Pumped Liquid: Water
• Maximum Operating Pressure: 10 bar
• Impeller Material: Stainless Steel
• Pump Housing Material: Stainless Steel

This is a Grundfos Booster pump or pressure system for increasing and maintaining system pressure.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.
