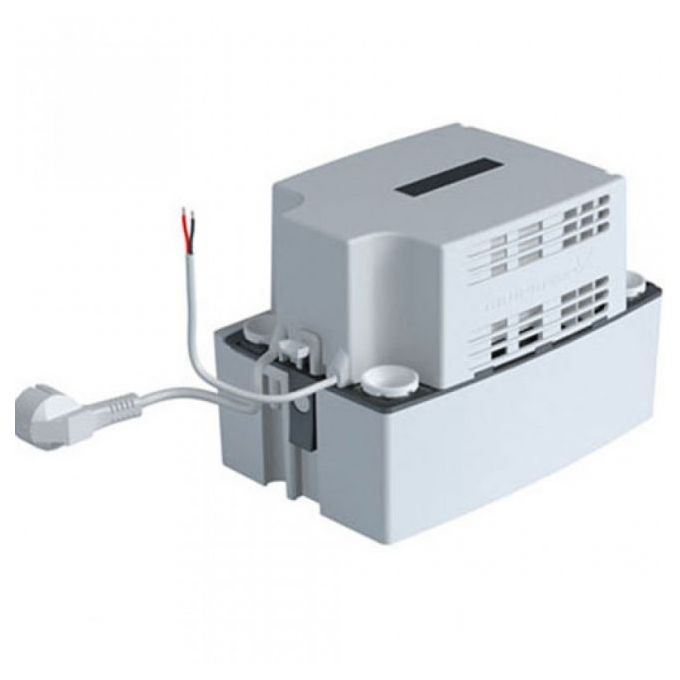

Grundfos - Conlift 1 Automatic Condensate Removal Pump - 240V

Grundfos - Conlift 1 Automatic Condensate Removal Pump - 240V - GR-97936173

Typical applications:

• Condensate boilers. A 200 kW boiler can be drained up to 5 m duty point
• For condensate with a pH value above 2.5
• For condensate from air-conditioning systems, cooling and refrigeration systems, air dehumidifiers and evaporators
• For condensate with a pH value below 2.5, useConlift2 pH+

Functions:

• Condensate runs by natural fall through a hose into the tank
• Liquid level in the tank is controlled automatically by a float switch
• Condensate is conveyed through the discharge hose to the drain
• Safety overflow switch with a 1.7-metre electric cable which can be connected to the condensate boiler and set to stop the boiler in case of an alarm
• Maintenance-free shaded-pole motor

Incorporates:

• Four inlets with grommets to seal and fix the inlet hose
• 180 °-rotatable flange for selection of optimum discharge position
• IP24 cover for protection against splashing water
• Two snap-fasteners enabling easy access to the tank in case of service
• Pump operation test button
• Stepped outlet socket for ∅8 and ∅10 mm hoses
• Inline non-return check valve with bayonet connection for easy service
• Special inlet design preventing sedimentation and evaporation from boiler
• Stainless-steel motor shaft additionally protected by a mechanical shaft seal
• Self-venting hydraulics
• Rotating lip seal protecting bearing and motor against evaporation from tank
• Special float switch designed to prevent evaporation from tank and corrosion on micro switches
• Alignment wheel enabling easy adjustment in wall-hung installations
• Designed and rated for wall-hung and floor-standing system installation
