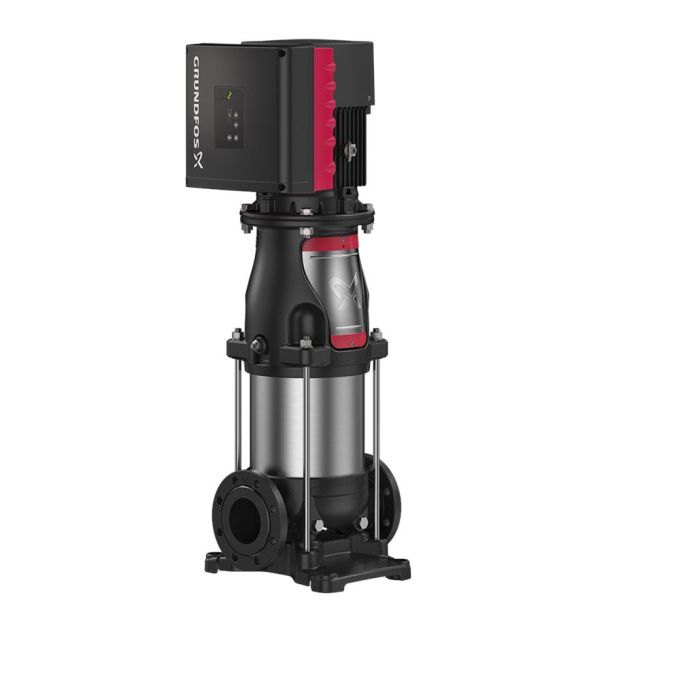

Grundfos - CRE95-1-1 N-F-A-E-HQQE Vertical Multi-Stage Pump - 400V - Three Phase - 1901 Ltr/min.

Vertical, multistage centrifugal Pump with inlet and outlet ports on same the level (inline). The Pump head and base are in Cast Iron – all other wetted parts are in Stainless Steel. The Grundfos cartridge shaft seal guarantees elevated dependability, safe handling, and simple access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges. The Pump is equipped with a 3-phase, fan-cooled, permanent-magnet, synchronous motor. The motor performance is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable management of the motor speed, which again enables adaptation of the output to a given requirement.

• Suitable for Commercial heating, Commercial air conditioning, Commercial water pressure boosting, District heating, District cooling, Machining, Industrial cleaning process, Process liquids transfer, Industrial heating, Industrial cooling, Industrial water supply & transfer, Industrial wastewater treatment & reuse, Industrial process, water treatment, Desalination, Reverse Osmosis, Surface water intake, Drinking water treatment, Water distribution, Irrigation, Solar water solutions, Community water supply
• The impeller is manufactured from Stainless Steel
• Maximum operating pressure: 16 Bar.
• Temperature liquid range: -20 .. 120 °C.
• Approvals include CE,UKCA,SEPRO

Real-world product applications

• Pressure boosting for water supply systems
• Feeding distribution networks requiring higher pressure
• Supporting irrigation and washdown water delivery
• General clean-water transfer for utility systems
• Supplying water to buildings and equipment

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.
