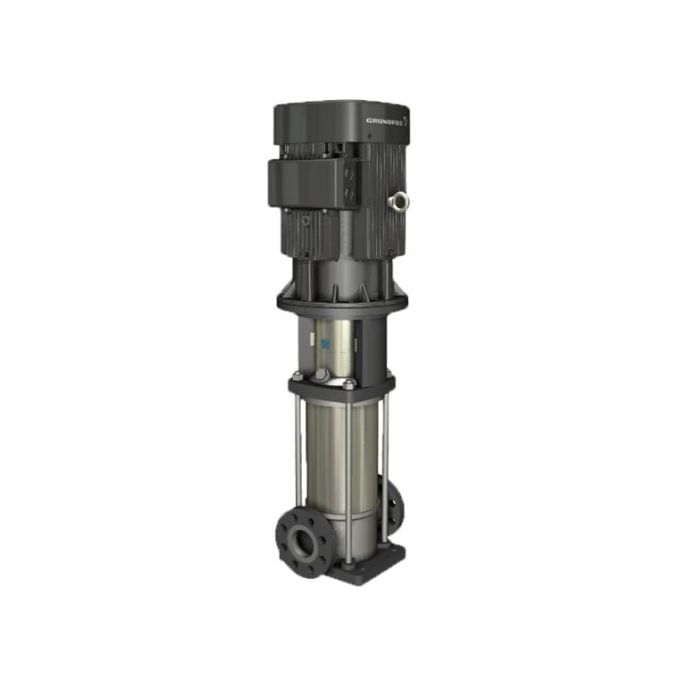

Grundfos - CRN45-4 A-F-H-E-HQQE Vertical Multi-Stage Pump - 400V - Three Phase - 750 Ltr/min. - Stainless Steel

Name: Grundfos - CRN45-4 A-F-H-E-HQQE Vertical Multi-Stage Pump - 400V - Three Phase - 750 Ltr/min. - Stainless Steel
Brand: Grundfos
SKU: 96691398
Price: 10626.3 GBP
Availability: InStock

Part Number:

96691398

CRN 45-4 A-F-H-E-HQQE Vertical, multistage centrifugal Pump with inlet and outlet ports on same the level (inline).

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£14,168.40 RRP £10,626.30 £8,855.25

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

CRN 45-4 A-F-H-E-HQQE

Vertical, multistage centrifugal Pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in elevated-grade Stainless Steel. A cartridge shaft seal guarantees elevated dependability, safe handling, and simple access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges. The Pump is equipped with a 3-phase, fan-cooled asynchronous motor.

The impeller is manufactured from Stainless Steel
Maximum operating pressure: 16 Bar.
Temperature liquid range: -40 .. 120 °C.
Approvals include CE,EAC,UKCA,SEPRO,

Real-world product applications

Pressure boosting for water supply systems
Feeding distribution networks requiring higher pressure
Supporting irrigation and washdown water delivery
General clean-water transfer for utility systems
Supplying water to buildings and equipment

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£8,855.25
Manufacturer	Grundfos
Warranty	1 year guarantee
Impeller Type	Vertical multistage
Impeller Stages	4
Electrical supply	400V
AC Power	Three Phase
Flow Rate	750 Ltr/min
Max Head	102.4 m
Water type	Clean or Discoloured
Pump Type Filter	Multistage
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Next Day Delivery	No
Manufacturers Part Number	96691398
