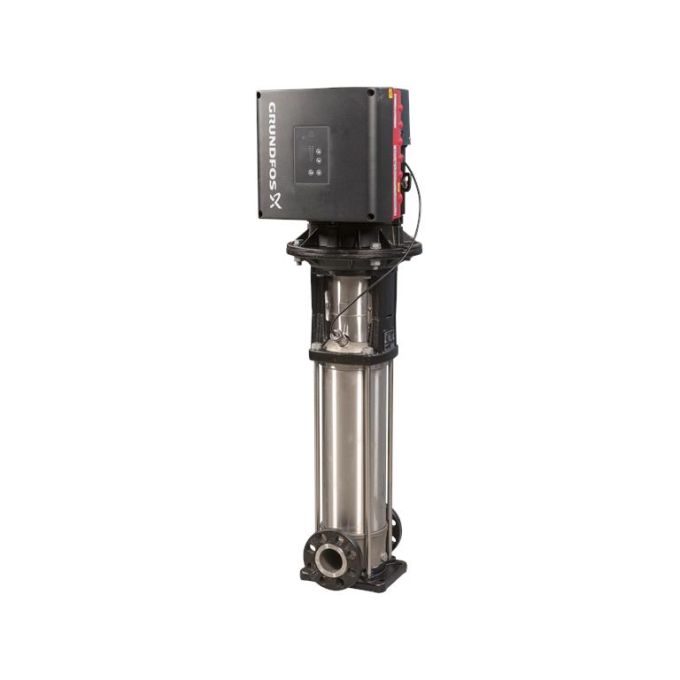

CRNE 20-6 N-FGJ-A-E-HQQE Vertical, multi-stage centrifugal pump unit with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade Stainless Steel. A cartridge shaft seal ensures high reliability, safe handling, and straightforward access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is equipped with a 3-phase, fan-cooled, permanent-magnet, synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. An operating panel on the motor terminal box enables setting of required setpoint as well as setting of pump to "Min." or "Max." operation or to "Stop". The Grundfos Eye indicator on the operating panel provides visual indication of pump status:
- "Alarm": Motor has stopped (flashing red indicator lights)
- "Warning": Motor is still running (rotating yellow indicator lights) or has stopped (permanently yellow indicator lights)
- "Power on": Motor is running (rotating green indicator lights) or not running (permanently green indicator lights)
|
|
Communication with the pump is possible by means of Grundfos GO Remote (accessory). The remote control enables further settings as well as reading out of a number of parameters such as "Actual value", "Speed", "Power input" and total "Power consumption".
Suitable for: Commercial heating, Commercial air conditioning, Commercial water pressure boosting, District heating, District cooling, Machining, Industrial cleaning process, Process liquids transfer, Industrial heating, Industrial cooling, Industrial water supply and transfer, Industrial wastewater treatment and reuse, Industrial process water treatment, Desalination, Reverse osmosis, Surface water intake, Drinking water treatment, Water distribution, Irrigation, Solar water solutions, Community water supply
Real-world product applications
- Pressure boosting for water supply systems
- Feeding distribution networks requiring higher pressure
- Supporting irrigation and washdown water delivery
- General clean-water transfer for utility systems
- Supplying water to buildings and equipment
Key Product Features
- Net weight: 110 kg
- Mains frequency: 50 / 60 Hz
- Approvals: CE,EAC,UKCA,CURUS,SEPRO
- Rated Head: 102.4 m
- Max Head: 126.7 m
- Rated Flow: 24.26 m³/h
- Product Voltage: 3 x 380-500 V
- Temperature Liquid Range: -20 .. 120 °C
- Pumped Liquid: Water
- Type of connection: DIN / ANSI / JIS
- Maximum Operating Pressure: 25 bar
- Impeller Material: Stainless Steel
This is a Grundfos Multistage pump built for high-pressure water supply applications.
Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.
This item is now obsolete. Please view our alternatives below.
