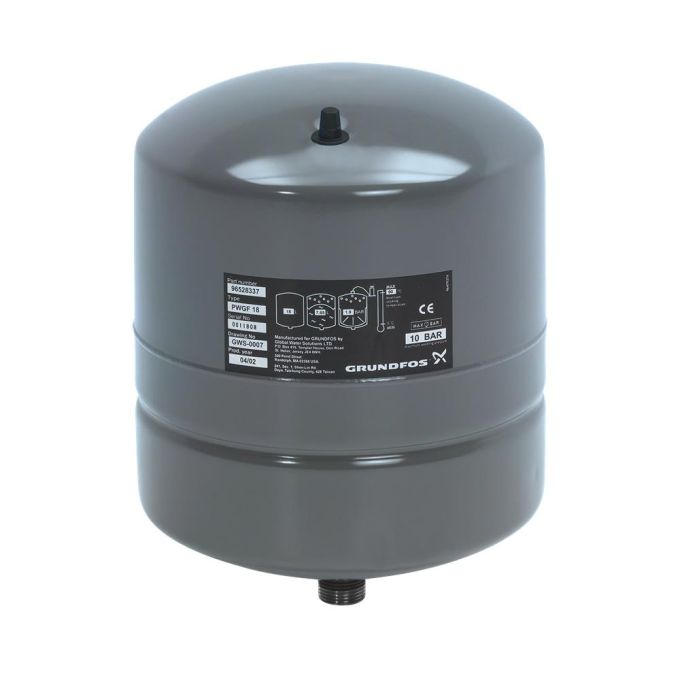

Grundfos - GT-H-18 Vertical Cold Water Diaphragm Tank - 10 Bar. - 18 Ltr

The tank is a steel pressure tank made of a virgin propylene liner. The tanks have a non-replaceable FDA-approved high-grade butyl diaphragm, which is pre-charged with compressed nitrogen (1.9 bar).

To ensure long-lasting durability, the diaphragm and liner are both reinforced in specific wear areas. All internal parts, including the air valve, are rounded to prevent piercing of the diaphragm in extreme conditions. The water connection uniquely provides a dual water and air seal ensuring a completely leakage-free pressure tank. Combined with booster and irrigation systems as well as thermal expansion and hydraulic hammer arrestors, the tank is appropriate for drinking-water and grey-water applications. It provides optimised comfort and a patented stainless-steel water connection. The tank also features:

Real-world product applications

• Transferring liquids where controlled flow is needed
• Supporting utility liquid transfer and dispensing
• Handling intermittent pumping duties in compact systems
• Feeding liquids to distribution or treatment equipment
• General-purpose liquid transfer for compatible media

Key Product Features

• Net weight: 3.6 kg
• Approvals: CE,EAC
• Temperature Liquid Range: 0 .. 90 °C
• Connection Size: 3/4 inch
• Type of connection: G
• Maximum Operating Pressure: 10 bar

This is a Grundfos Pressure Vessel product used in professional pump and fluid handling applications.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.
