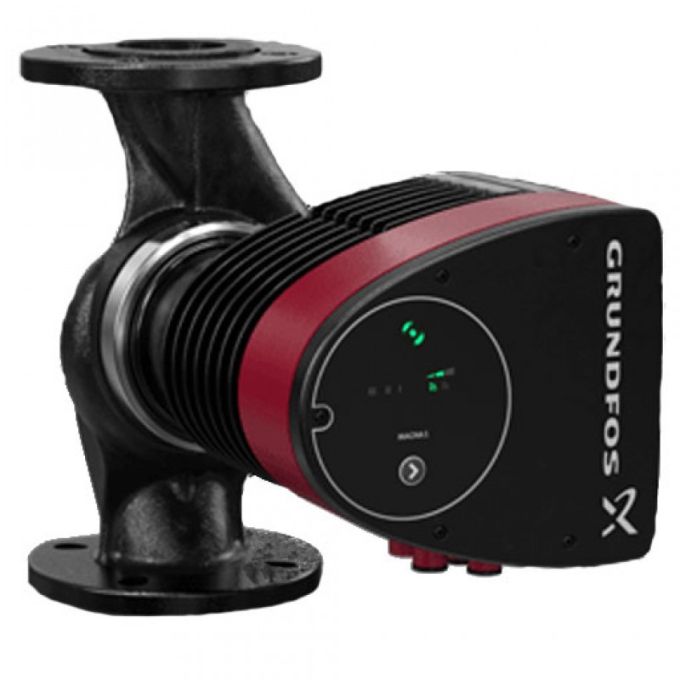

MAGNA1 32-120 F The Grundfos MAGNA1 circulator pump is the uncomplicated option for a job to run reliably. With its high energy efficiency, the product complies with the EuP 2015 regulations, ensuring substantial savings on electricity. With its intuitive, user-friendly interface and maintenance-free design, MAGNA1 is the well-suited circulator pump for basic performance needs in applications where basic system control and monitoring are desired.
Grundfos Magna1 32-120F (220) ERP/EUP ready variable-speed Circulator Pump.
The Grundfos Magna1 32-120F (220) is a variable-speed circulator which is used primarily for one and two-pipe heating systems.
The Grundfos Magna1 range are energy efficient variable-speed circulators which comply with ERP/EUP European legislation.
NOTE: THIS PUMP HAS FLANGED CONNECTIONS
MAGNA1 circulator pump with easy selection of pump settings.
With this range of circulator pumps, everything from setup to basic control and monitoring are made straightforward. The pump is maintenance-free due to the canned-rotor type design. MAGNA1 offers the possibility of monitoring the pump via the fault relay output. The digital start and stop input remotely controls the pump. The pump communicates wirelessly with the Grundfos GO Remote app. MAGNA1 can work as the main pump in both heating and cooling applications, including:
- small chiller applications
- ground-source heat pump systems
- air-conditioning surfaces
- heating surfaces
- mixing loops
|
|
MAGNA1 is a single-phase pump characterised by the controller and operating panel being integrated in the control box. The pump housing is available in both cast-iron and stainless-steel versions. The composite rotor can is carbon-fibre reinforced, the bearing plate and rotor cladding are made of Stainless Steel and the stator housing is made of aluminium. The power electronics are air-cooled.
The pump incorporates a 4-pole synchronous, permanent-magnet motor (PM motor). This motor type is characterised by higher efficiency than a conventional asynchronous squirrel-cage motor. The pump speed is controlled by an integrated frequency converter.
Suitable for: Commercial heating, Commercial air conditioning, District heating, District cooling, Domestic heating, Industrial heating
Real-world product applications
- Boosting water pressure to multiple outlets in a building
- Maintaining stable pressure where demand varies
- Supplying water from storage tanks to distribution pipework
- Supporting general water supply and transfer systems
- Assisting with pressure control in utility installations
Key Product Features
- Net weight: 15.2 kg
- Mains frequency: 50 / 60 Hz
- Approvals: CE,VDE,EAC,MOROCCO,UKCA,TSE,RCM,UkrSEPRO
- Max Head: 120 dm
- Product Voltage: 1 x 230 V
- Temperature Liquid Range: -10 .. 110 °C
- Pumped Liquid: Water
- Port to Port Length: 220 mm
- Connection Size: DN 32
- Type of connection: DIN
- Maximum Operating Pressure: 10 bar
- Impeller Material: Composite
- Pump Housing Material: Cast Iron
This is a Grundfos Circulator pump which can be used within closed loop cooling, heating and hot water systems.
Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.
This item is now obsolete. Please view our alternatives below.
