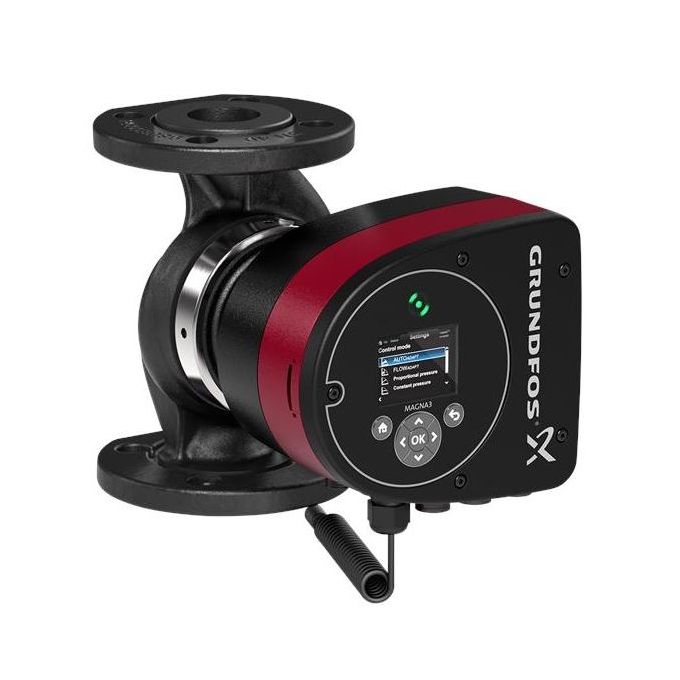

Grundfos - Magna3 40-60F Variable Speed Circulator - 240V - Cast Iron

The Grundfos MAGNA3 circulator Pump is the ideal choice for almost any building project – old or new. With its unrivalled energy performance, all-encompassing range and built-in communication capabilities, MAGNA3 is ideal for engineers and specifiers looking to create elevated-output heating and cooling installations. The Pump is maintenance-free due to the canned-rotor type design. This also means that Pump and motor form an integral device without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the Pumped liquid. MAGNA3 features an intuitive display and allows you to connect wirelessly with the Grundfos GO Remote app, giving you access to next-gen reporting and monitoring. MAGNA3 model E has Bluetooth, which allows you to connect directly to the Grundfos GO app on your smart phone without any need for a dongle. The Pump includes fieldbus communication via CIM modules as well as analogue and digital inputs and configurable relays. Management features include AUTOADAPT and FLOWADAPT. FLOWADAPT reduces the need for throttling valves, thus cutting costs on installation components. MAGNA3 is the superior choice for a wide range of heating and cooling applications,

• Suitable for Commercial heating,
• This product's housing material is Cast Iron
• The impeller is manufactured from Composite
• Maximum operating pressure: 10 Bar.
• Temperature liquid range: -10 .. 110 °C.
• Approvals include CE,VDE,EAC,MOROCCO,UKCA,TSE,RCM,UkrSEPRO

Real-world product applications

• Boosting water pressure to multiple outlets in a building
• Maintaining stable pressure where demand varies
• Supplying water from storage tanks to distribution pipework
• Supporting general water supply and transfer systems
• Assisting with pressure control in utility installations

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.
