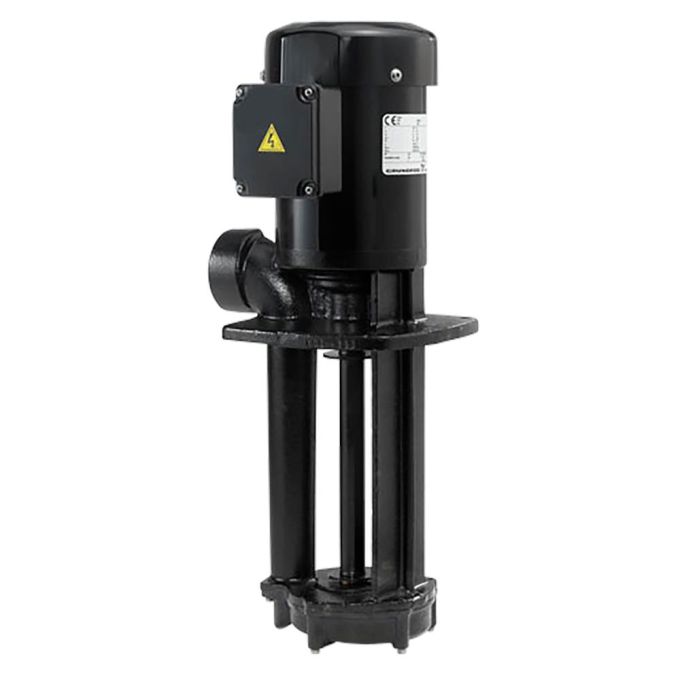

Grundfos - MTA 100H-280 A-W-B-T Single Stage Tank Mounted Pump - 400V - Three Phase - 90 Ltr/min. - Cast Iron

Name: Grundfos - MTA 100H-280 A-W-B-T Single Stage Tank Mounted Pump - 400V - Three Phase - 90 Ltr/min. - Cast Iron
Brand: Grundfos
SKU: 97989304
Price: 814.8 GBP
Availability: InStock

Part Number:

97989304

MTA 100H-280 A-W-B-T Low pressure immersible centrifugal pump unit for installation, in filtering systems or conveyer systems in the machine tool industry.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,164.00 RRP £814.80 £679.00

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

MTA 100H-280 A-W-B-T

Low pressure immersible centrifugal pump unit for installation, in filtering systems or conveyer systems in the machine tool industry.

The pump has the following characteristics:

The pump has no wearing parts
Motor stool and pump housing are made of Cast Iron
Impeller is made of Bronze
Open impeller allows particles to pass through pump
The pump is equipped with a 3-phase integrated motor
The pump is closed-coupled without shaft seal

Suitable for: Industrial cleaning process

Key Product Features

Net weight: 18.5 kg
Mains frequency: 50 Hz
Approvals: CE
Rated Head: 7.6 m
Max Head: 14.1 m
Rated Flow: 90 l/min
Product Voltage: 3 x 220-240D/380-415Y V
Temperature Liquid Range: 0 .. 60 °C
Pumped Liquid: Emulsion
Impeller Material: Bronze
Pump Housing Material: Cast Iron

This is a Grundfos Coolant Pump product used in professional pump and fluid handling applications.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£679.00
Manufacturer	Grundfos
Warranty	1 year guarantee
Electrical supply	400V
AC Power	Three Phase
Flow Rate	90 Ltr/min
Max Head	14.1 m
Water type	Clean or Discoloured
Duty Type	Commercial
Submersible vs Surface Mounted	Immersible
Pump Type Filter	Tank Mounted Pump
Next Day Delivery	No
Port To Port	280mm
Manufacturers Part Number	97989304
