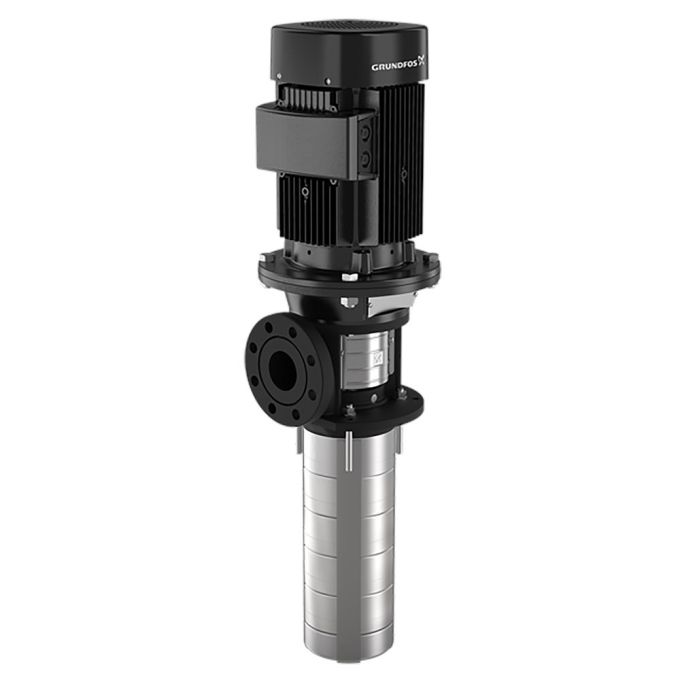

Grundfos - MTR 32 13/13 A W A HUUV 30kW Vertical Multi-Stage Immersible Pump - 415V - Three Phase - 682 Ltr/min.

Name: Grundfos - MTR 32 13/13 A W A HUUV 30kW Vertical Multi-Stage Immersible Pump - 415V - Three Phase - 682 Ltr/min.
Brand: Grundfos
SKU: 98513685
Price: 16240.56 GBP
Availability: InStock

Part Number:

98513685

MTR 32-13/13 A-F-A-HUUV multi-stage, immersible, self-priming, centrifugal pump unit for vertical installation in tanks etc.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£23,200.80 RRP £16,240.56 £13,533.80

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

MTR 32-13/13 A-F-A-HUUV

multi-stage, immersible, self-priming, centrifugal pump unit for vertical installation in tanks etc. The pump head and base are in Cast Iron – all other wetted parts are in Stainless Steel. The pump has the following characteristics:

Power transmission via sintered metal split coupling
Mechanical shaft seal according to EN 12756
Impellers, intermediate chambers and spline shaft are made of Stainless Steel
Dimensions according to DIN 5440

A cartridge shaft seal ensures high reliability, safe handling, and straightforward access and service. The pump is equipped with a 3-phase, fan-cooled asynchronous motor.

Suitable for: Machining

Real-world product applications

Pressure boosting for water supply systems
Supporting irrigation and washdown water delivery
Supplying water to buildings and equipment

Key Product Features

Net weight: 277 kg
Mains frequency: 50 Hz
Approvals: CE,EAC,UKCA
Rated Head: 203.3 m
Rated Flow: 500 l/min
Product Voltage: 3 x 380-420D/660-725Y V
Temperature Liquid Range: -10 .. 90 °C
Pumped Liquid: Emulsion
Type of connection: DIN
Maximum Operating Pressure: 25 bar
Impeller Material: Stainless Steel

This is a Grundfos Multistage pump built for high-pressure water supply applications.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£13,533.80
Manufacturer	Grundfos
Warranty	1 year guarantee
Impeller Type	Vertical multistage
Impeller Stages	13
Electrical supply	415V
AC Power	Three Phase
Flow Rate	682 Ltr/min
Max Head	263m
Water type	Clean or Discoloured
Pump Type Filter	Multistage
Duty Type	Commercial
Submersible vs Surface Mounted	Immersible
Next Day Delivery	No
Manufacturers Part Number	98513685
