Grundfos - NB 250-450/445AASF1AESBQQEYW3 End Suction Pump - 400V - Three Phase - 15452 Ltr/min. - Cast Iron

Name: Grundfos - NB 250-450/445AASF1AESBQQEYW3 End Suction Pump - 400V - Three Phase - 15452 Ltr/min. - Cast Iron
Brand: Grundfos
SKU: 98976242
Price: 43272.6 GBP
Availability: InStock

Part Number:

98976242

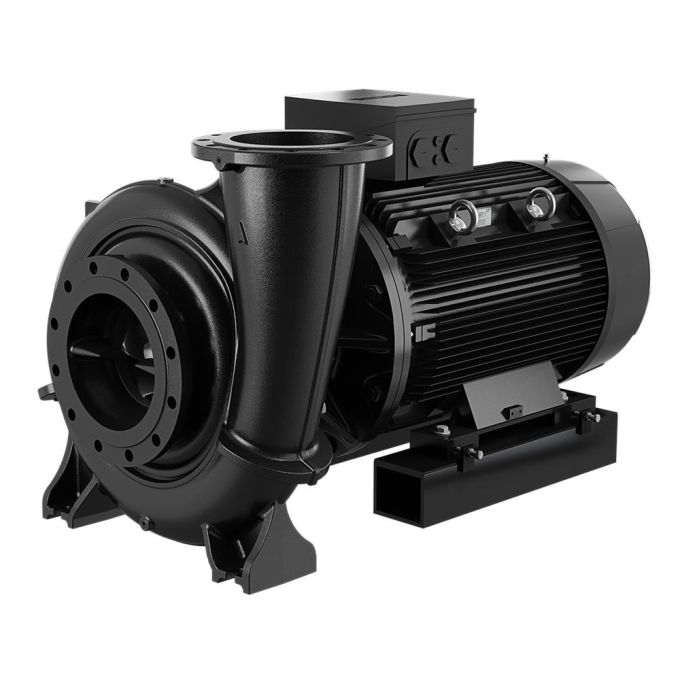

NB 250-450/445 AASF1AESBQQEYW3 Non-self-priming, single-stage, centrifugal volute pump unit designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar).

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£61,818.00 RRP £43,272.60 £36,060.50

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

NB 250-450/445 AASF1AESBQQEYW3

Non-self-priming, single-stage, centrifugal volute pump unit designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar). Flanges are PN 10 with dimensions according to EN 1092-2. The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756. The pump is close-coupled to a fan-cooled asynchronous motor.

Suitable for: Commercial air conditioning, Industrial heating, Irrigation

Key Product Features

Net weight: 1940 kg
Mains frequency: 50 Hz
Rated Head: 60.29 m
Rated Flow: 927.6 m³/h
Product Voltage: 3 x 380-420D/660-725Y V
Temperature Liquid Range: -25 .. 120 °C
Pumped Liquid: Water
Maximum Operating Pressure: 10 bar
Impeller Material: Cast Iron
Pump Housing Material: Cast Iron

This is a Grundfos Multistage pump built for high-pressure water supply applications.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£36,060.50
Manufacturer	Grundfos
Warranty	1 year guarantee
Electrical supply	400V
AC Power	Three Phase
Flow Rate	15452 Ltr/min
Pump Type Filter	End Suction Pump
Duty Type	Commercial
Inlet Connection	DN 300
Outlet Connection	DN 250
Next Day Delivery	No
Manufacturers Part Number	98976242
