Grundfos - NB 80-315/334AASF2AESBQQEQW3 Circulator Pump - 400V - Three Phase - 2451 Ltr/min.

Name: Grundfos - NB 80-315/334AASF2AESBQQEQW3 Circulator Pump - 400V - Three Phase - 2451 Ltr/min.
Brand: Grundfos
SKU: 98868112
Price: 7984.2 GBP
Availability: InStock

Part Number:

98868112

This unit runs at 400V. It is manufactured in Cast iron.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£11,406.00 RRP £7,984.20 £6,653.50

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

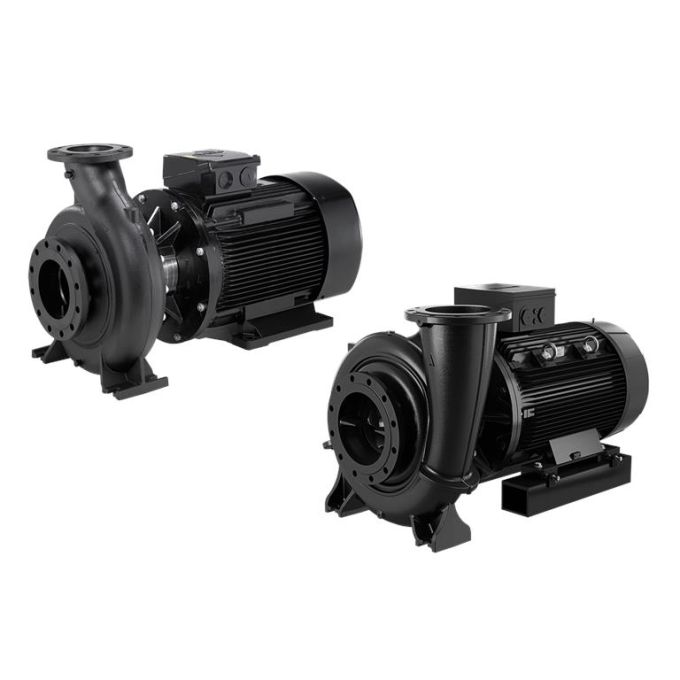

Grundfos - NB 80-315/334AASF2AESBQQEQW3 Circulator Pump - 400V - Three Phase - 2451 Ltr/min. - 98868112

NB 80-315/334 AASF2AESBQQEQW3

Non-self-priming, single-stage, centrifugal volute pump designed in compliance with ISO 5199 with dimensions and rated performance in compliance with EN 733 (10 bar). Flanges are PN 16 with dimensions in compliance with EN 1092-2. The pump has an axial suction inlet port, radial discharge outlet port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and hydraulic impeller without disturbing the pump volute casing or pipework system installation. The unbalanced rubber bellows seal is in compliance with DIN EN 12756. The pump is close-coupled to a fan-cooled asynchronous motor.

Real-world product applications

Circulating water around closed-loop pipework systems
Maintaining flow through distribution circuits
Supporting recirculation in building services installations
Keeping consistent flow through equipment or pipe runs
Assisting with loop circulation for system efficiency

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£6,653.50
Manufacturer	Grundfos
Warranty	1 year guarantee
Electrical supply	400V
AC Power	Three Phase
Flow Rate	2451 Ltr/min
Pump Type Filter	Circulator Pump
Duty Type	Commercial
Next Day Delivery	No
Manufacturers Part Number	98868112
