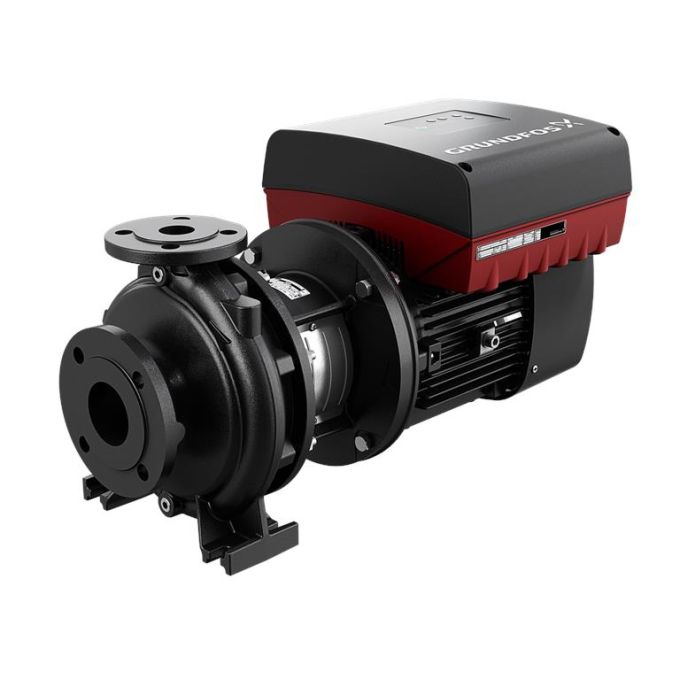

Grundfos - NBE 50-315/303AAF2AESBQQELWA End Suction Pump - 400V - Three Phase - 703 Ltr/min. - Cast Iron

Name: Grundfos - NBE 50-315/303AAF2AESBQQELWA End Suction Pump - 400V - Three Phase - 703 Ltr/min. - Cast Iron
Brand: Grundfos
SKU: 99101971
Price: 7203.84 GBP
Availability: InStock

Part Number:

99101971

NBE 50-315/303 AAF2AESBQQELWA Non-self-priming, single-stage, centrifugal volute Pump engineered according to ISO 5199 with dimensions and rated output according to EN 733 (10 Bar).

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£10,291.20 RRP £7,203.84 £6,003.20

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

NBE 50-315/303 AAF2AESBQQELWA

Non-self-priming, single-stage, centrifugal volute Pump engineered according to ISO 5199 with dimensions and rated output according to EN 733 (10 Bar). Flanges are PN 16 with dimensions according to EN 1092-2. The Pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the Pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756. The Pump is close-coupled to a fan-cooled, permanent-magnet synchronous motor. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable management of the motor speed, which again enables adaptation of the output to a given requirement.

Suitable for Commercial air conditioning, Industrial heating, Irrigation,
This product's housing material is Cast Iron
The impeller is manufactured from Cast Iron
Maximum operating pressure: 16 Bar.
Temperature liquid range: -25 .. 120 °C.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£6,003.20
Manufacturer	Grundfos
Warranty	1 year guarantee
Electrical supply	400V
AC Power	Three Phase
Flow Rate	703 Ltr/min
Water type	Clean or Discoloured
Pump Type Filter	End Suction Pump
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Next Day Delivery	No
Manufacturers Part Number	99101971
