Grundfos - NK 125-315/317AA2F2AESBQQEYW1 Long Coupled Single Stage End Suction Pump - 400V - Three Phase - 8089 Ltr/min.

Name: Grundfos - NK 125-315/317AA2F2AESBQQEYW1 Long Coupled Single Stage End Suction Pump - 400V - Three Phase - 8089 Ltr/min.
Brand: Grundfos
SKU: 98444952
Price: 64533 GBP
Availability: InStock

Part Number:

98444952

This unit delivers a maximum head of 130.4 m and runs at 400V. It is manufactured in Cast iron. Grundfos (est.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£92,190.00 RRP £64,533.00 £53,777.50

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Grundfos - NK 125-315/317AA2F2AESBQQEYW1 Long Coupled Single Stage End Suction Pump - 400V - Three Phase - 8089 Ltr/min. - 98444952

NK 125-315/317 AA2F2AESBQQEYW1

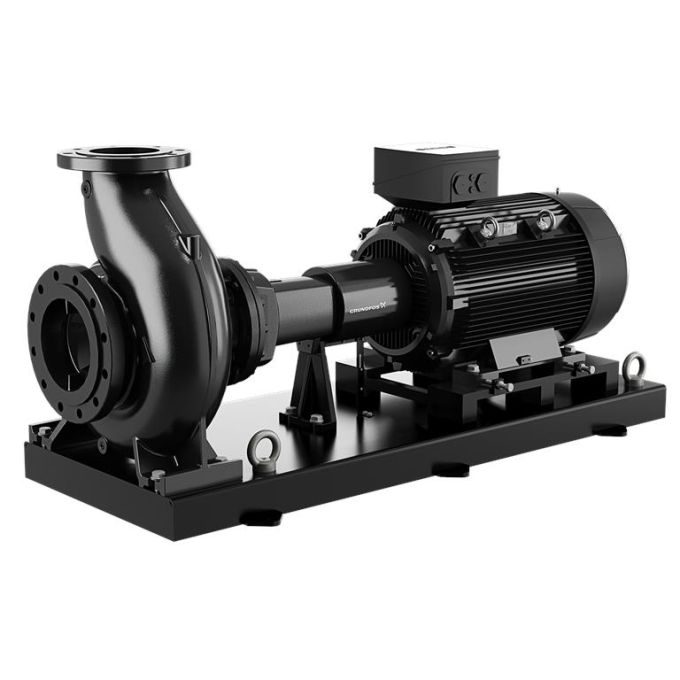

Non-self-priming, single-stage, centrifugal pump set designed in compliance with ISO 5199 with dimensions and rated performance in compliance with EN 733. Flanges are PN 16 with dimensions in compliance with EN 1092-2. The pump has an axial suction inlet port, a radial discharge outlet port and horizontal shaft. It is of the back pull-out design enabling removal of the coupling, bearing bracket and hydraulic impeller without disturbing the motor, pump volute casing or pipework system installation. The unbalanced rubber bellows seal is in compliance with DIN EN 12756. The pump is fitted with a foot-mounted, fan-cooled asynchronous motor. Pump and motor are mounted on a common structural base frame.

More Information
Price	£53,777.50
Manufacturer	Grundfos
Warranty	1 year guarantee
Electrical supply	400V
AC Power	Three Phase
Flow Rate	8089 Ltr/min
Max Head	130.4 m
Water type	Clean or Discoloured
Pump Type Filter	End Suction Pump
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Inlet Connection	DN 150
Outlet Connection	DN 125
Next Day Delivery	No
Manufacturers Part Number	98444952
