Grundfos - NK 200-450/455AA2F1AESBQQEYW3 Long Coupled Single Stage End Suction Pump - 400V - Three Phase - 10983 Ltr/min. - Cast Iron

Name: Grundfos - NK 200-450/455AA2F1AESBQQEYW3 Long Coupled Single Stage End Suction Pump - 400V - Three Phase - 10983 Ltr/min. - Cast Iron
Brand: Grundfos
SKU: 98973099
Price: 44668.68 GBP
Availability: InStock

Part Number:

98973099

NK 200-450/455 AA2F1AESBQQEYW3 Non-self-priming, single-stage, centrifugal Pump engineered according to ISO 5199 with dimensions and rated output according to EN 733.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£63,812.40 RRP £44,668.68 £37,223.90

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

NK 200-450/455 AA2F1AESBQQEYW3

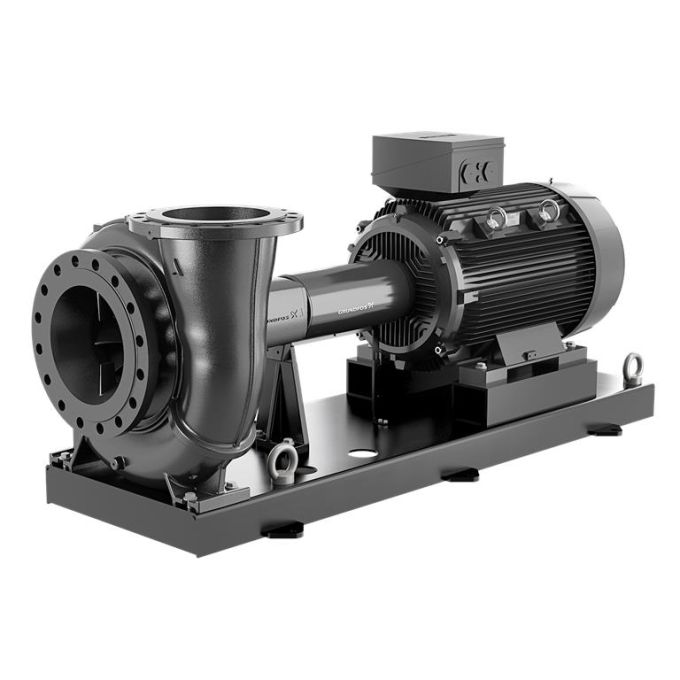

Non-self-priming, single-stage, centrifugal Pump engineered according to ISO 5199 with dimensions and rated output according to EN 733. Flanges are PN 10 with dimensions according to EN 1092-2. The Pump has an axial suction port, a radial discharge port and horizontal shaft. It is of the back pull-out design enabling removal of the motor, coupling, bearing bracket and impeller without disturbing the Pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756. The Pump is equipped with a foot-mounted, fan-cooled asynchronous motor. Pump and motor are mounted on a common base frame.

Suitable for Commercial heating,
This product's housing material is Cast Iron
The impeller is manufactured from Cast Iron
Maximum operating pressure: 10 Bar.
Temperature liquid range: -25 .. 120 °C.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£37,223.90
Manufacturer	Grundfos
Warranty	1 year guarantee
Electrical supply	400V
AC Power	Three Phase
Flow Rate	10983 Ltr/min
Water type	Clean or Discoloured
Pump Type Filter	End Suction Pump
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Inlet Connection	DN 250
Outlet Connection	DN 200
Next Day Delivery	No
Manufacturers Part Number	98973099
