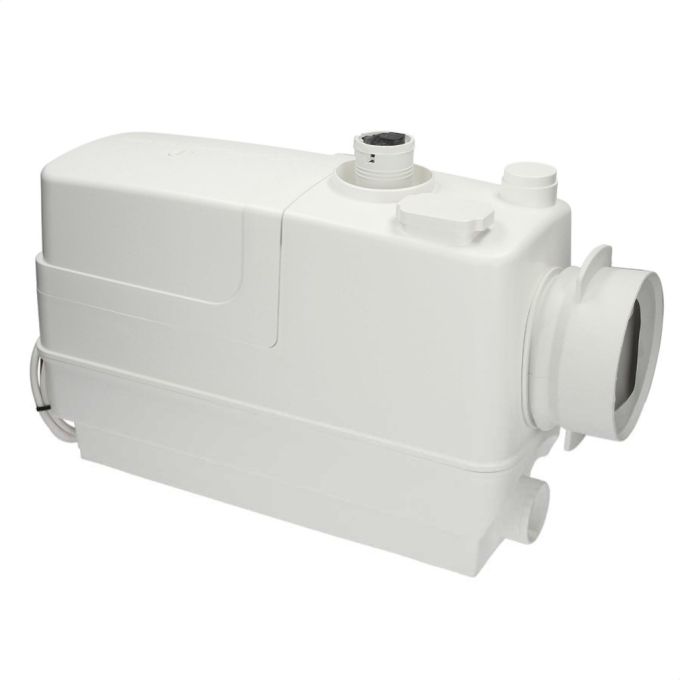

Grundfos - Sololift 2 CWC-3 Domestic Wastewater Mascerator Packaged Pumping Unit - Wall Hung - 230V - 0.42kW

Name: Grundfos - Sololift 2 CWC-3 Domestic Wastewater Mascerator Packaged Pumping Unit - Wall Hung - 230V - 0.42kW
Brand: Grundfos
SKU: GR-97775331
Price: 610.76 GBP
Availability: InStock

Part Number:

GR-97775331

SOLOLIFT2 CWC-3 Sololift2 CWC-3 is a small, space-efficient self-operating lifting station appropriate for pumping of wastewater off places in private dwellings where wastewater cannot be led directly to the sewer by means of a natural downward slope.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,604.40 RRP £610.76 £508.97

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

SOLOLIFT2 CWC-3

Sololift2 CWC-3 is a small, space-efficient self-operating lifting station appropriate for pumping of wastewater off places in private dwellings where wastewater cannot be led directly to the sewer by means of a natural downward slope. Sololift2 CWC-3 is typically used for:

wall-hung toilets, cabinet showers and washbasins in basements below sewer level, in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established

Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor. Sololift2 CWC-3 is appropriate for installation in a hollow space behind a wall-hung toilet. This lifting station is only appropriate for pumping wastewater from a cabinet shower and a washbasin as well as sewage water from a toilet containing toilet paper and faeces. The pumping of liquids containing other material may cause faults and limit the scope of our guarantee. The space-efficient lifting station is equipped with

Uplift fixation clips
Venting valve with overflow protection
Manual anti clogging function and separate drain connection for service
Slot for an alarm board with buzzer (accessory)
adaptable connectors for inlet (adjustable in height) of pipes Ø36 or 40
DN100 toilet connection hose
Dry and high performance motor unit incl. thermal protection, pressure switch and controller
integrated non return valve
Horizontal or vertical fastening possibility of discharge hose connector with several adaptors for pipes with Ø22-40mm
Cable with or without plug (see technical data)

Design according to EN12050-3 and production inspection by external institute with unique features focused on quick installation, long lasting operation and straightforward clean service.

Suitable for: Domestic wastewater

Real-world product applications

Handling liquids containing suspended solids
Supporting drainage in foul-water installations
Assisting with wastewater movement on sites and properties

Key Product Features

Net weight: 8.1 kg
Mains frequency: 50 Hz
Approvals: CE,CHROHS,MORO,UKCA
Rated Head: 5.88 m
Max Head: 8.5 m
Rated Flow: 1.32 l/s
Product Voltage: 1 x 220-240 V
Temperature Liquid Range: 0 .. 50 °C
Impeller Material: Polymer - PPE
Pump Housing Material: Composite

This is a Grundfos product used in reliable, professional pump and fluid handling applications.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£508.97
Manufacturer	Grundfos
Warranty	1 year guarantee
Electrical supply	230V
AC Power	Single Phase
Flow Rate	138 Ltr/min
Max Head	8.7m
Pump Type Filter	Waste Water Unit
Switch	None
Duty Type	Domestic
Submersible vs Surface Mounted	Surface Mounted
Next Day Delivery	No
Manufacturers Part Number	97775331
