Grundfos - SPK 4-15/15 A-W-A-AUUV Immersible Multi-Stage Pump - 415V - Three Phase - 15 Stage

Name: Grundfos - SPK 4-15/15 A-W-A-AUUV Immersible Multi-Stage Pump - 415V - Three Phase - 15 Stage
Brand: Grundfos
SKU: 98776578
Price: 1556.93 GBP
Availability: InStock

Part Number:

98776578

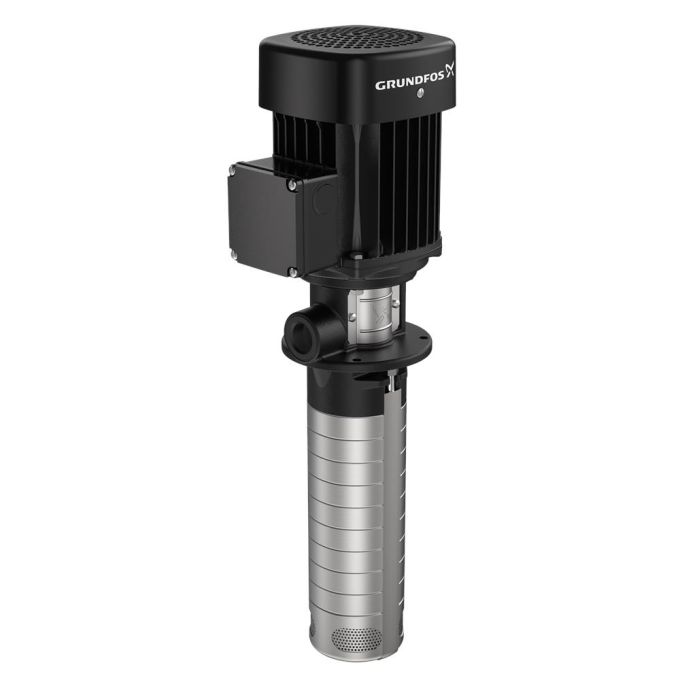

SPK 4-15/15 A-W-A-AUUV multi-stage, immersible, self-priming, centrifugal pump unit for vertical and horizontal installation in tanks etc.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£2,162.40 RRP £1,556.93 £1,297.44

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

SPK 4-15/15 A-W-A-AUUV
multi-stage, immersible, self-priming, centrifugal pump unit for vertical and horizontal installation in tanks etc.

The pump has the following characteristics:

Power transmission via Cast Iron split coupling
Mechanical shaft seal according to EN 12756
Impellers, intermediate chambers and spline shaft are made of Stainless Steel and motor stool of GG 20
Installation length according to DIN 5440

The motor is a 3-phase AC motor.

Suitable for: Machining

Real-world product applications

Pressure boosting for water supply systems
Supporting irrigation and washdown water delivery
Supplying water to buildings and equipment

Key Product Features

Net weight: 16.3 kg
Mains frequency: 50 Hz
Approvals: CE,EAC,UKCA,RCM,Morocco
Rated Head: 47.8 m
Rated Flow: 66.7 l/min
Product Voltage: 3 x 220-240D/380-415Y V
Temperature Liquid Range: -10 .. 90 °C
Pumped Liquid: Emulsion
Impeller Material: Stainless Steel
Pump Housing Material: Cast Iron

This is a Grundfos Multistage pump built for high-pressure water supply applications.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£1,297.44
Manufacturer	Grundfos
Warranty	1 year guarantee
Impeller Type	Vertical multistage
Impeller Stages	15
Electrical supply	415V
AC Power	Three Phase
Flow Rate	83.6 Ltr/min
Max Head	79m
Water type	Clean or Discoloured
Pump Type Filter	Multistage
Duty Type	Commercial
Submersible vs Surface Mounted	Immersible
Next Day Delivery	No
Manufacturers Part Number	98776578
